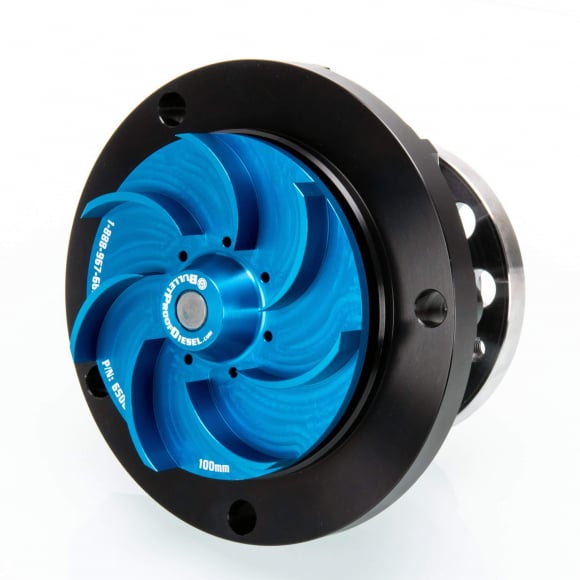

Bullet Proof Diesel 100mm Billet Water Pump (90201049) for 2004.5–2007 Ford 6.0L Powerstroke

Upgrade the weak point in your 6.0L cooling system. Factory water pumps use a plastic impeller that can crack at the hub, causing overheating, coolant loss, and expensive engine damage. This Bullet Proof Diesel billet water pump replaces that failure-prone design with a stronger, precision-machined unit built for durability under towing, daily driving, and high-load conditions.

The pump uses an all-billet aluminum housing instead of a typical cast housing, plus a metal impeller that resists cracking and flexing. A premium bearing and seal are included for long service life. The stiffer impeller helps reduce cavitation and erosion inside the front cover compared with the OEM plastic version.

Key features

• Precision-machined billet aluminum housing (not cast)
• Billet aluminum / metal impeller — not plastic
• Top-grade bearing and seal
• Includes O-ring
• Direct replacement for 100mm applications

Fitment Fits 2004.5–2007 Ford 6.0L Powerstroke Super Duty trucks (F-250, F-350, F-450, F-550 and similar) equipped with the 100mm water pump. Late-2004 and newer engines typically use the 100mm pump; 2003 and early-2004 engines usually use the 90mm version.

The only way to be certain is to measure the impeller. For 2004 models, check the VIN (example: …4EB… = later 2004.25+ build; 4EA often indicates an early/90mm truck). This is not a conversion kit to install a 100mm pump on a 90mm front cover.

Warranty: 1-year parts exchange.

This is a popular reliability upgrade for 6.0L owners who want to avoid the common OEM impeller failure and keep the cooling system working when the truck is working hard.
