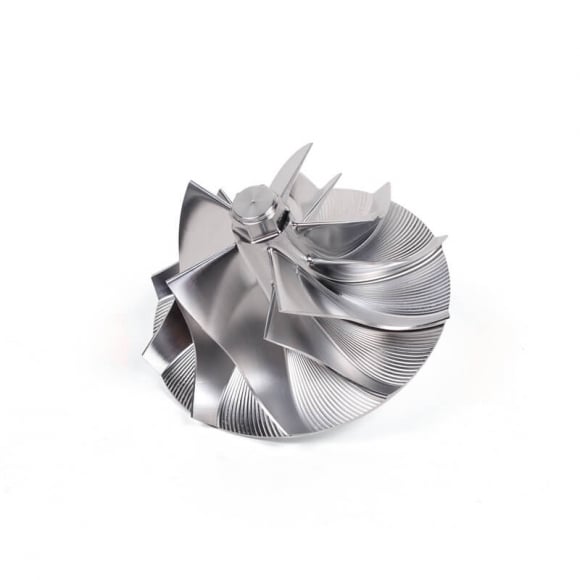

The DieselSite Wicked Wheel 2 WW1567 is a billet compressor wheel that drops into the factory turbo on 2015-2019 Ford 6.7L Powerstroke pickups. It replaces the stock cast wheel to improve throttle response, add boost and lower EGTs without changing the turbo housing.

DieselSite tested multiple blade counts, dimensions and pitch settings to settle on this design, which also adds surge protection over the stock wheel. This version is sized for the 2015-2019 pickup turbo.

• Billet Compressor Wheel: Machined replacement for the factory cast wheel.
• Faster Spool: Sharper throttle response and quicker boost.
• Lower EGTs: More airflow keeps exhaust temperatures down.
• Surge Protection: Designed to resist compressor surge.
• Drop-In Fit: Uses the factory turbo housing, no machining.

Technical Specifications

• Part Number: WW1567
• Manufacturer: DieselSite
• Type: Billet compressor wheel
• Thread: Reverse thread, self-tightening
• Balancing: Factory balanced

Vehicle Fitment & Technical Installation Notes

• Fitment: 2015-2019 Ford 6.7L Powerstroke pickups. Does not fit cab and chassis models.
• Installation Tip: Do not use an impact wrench on the turbo shaft. Hold the turbine shaft and remove the old wheel by hand, then snug the Wicked Wheel until it seats, since it self-tightens and this turbo uses a reverse thread.
