Thumbnail Filmstrip of 5.9 Cummins Exhaust Valve Guide SBI 140-8178 Images

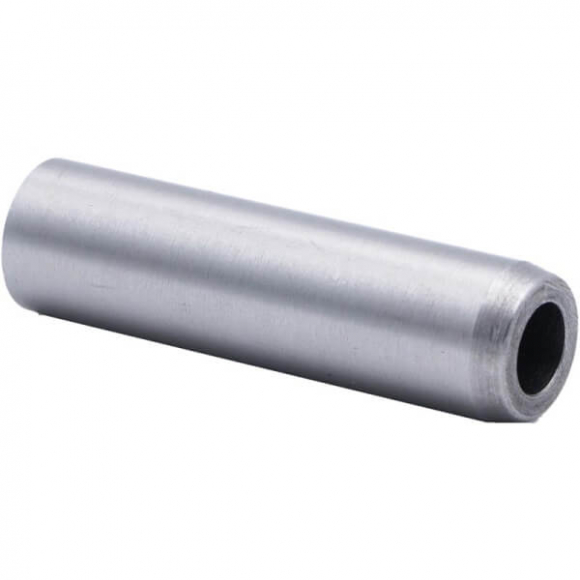

The SBI Exhaust Valve Guide 140-8178 is a critical restoration component for the Dodge 5.9L and 3.9L 4BT diesel engines, designed to provide a stable, low-friction path for your exhaust valves. Because the exhaust side of the cylinder head endures the most extreme thermal stress, the guide material must be exceptionally robust. These guides are cast from the highest quality iron, offering the ideal metallurgical properties for heat dissipation and oil retention. By replacing worn guides with these precision SBI units, you eliminate "valve tipping," ensuring that the valve head lands perfectly centered on the seat every time. This not only restores engine compression but also prevents the accelerated wear that leads to costly cylinder head failure.
- High-Grade Cast Iron Construction: Forged from premium cast iron to withstand the punishing heat cycles and high-pressure environment of a working diesel exhaust port.
- Precision Direct-Fit Machining: Manufactured to stringent industry standards and specified tolerances, allowing for a seamless installation into the cylinder head guide bore with minimal prep work.
- OE-Spec Performance: Designed to meet or exceed original equipment specifications for material integrity and dimensional accuracy.
- Seizure Protection: Engineered to maintain a precise oil film between the guide and the valve stem, significantly reducing the risk of catastrophic valve seizure.
- Sold Individually: Offers professional engine builders the flexibility to replace a single damaged guide or to source a full set for a complete 8-valve or 12-valve head overhaul.
A key educational aspect of a professional cylinder head rebuild is understanding the "interference fit." When the 140-8178 guide is pressed into the head, the physical force of the installation can slightly crush or distort the inner diameter of the guide. To guarantee the longevity of your 4BT or 5.9L Cummins, SBI strongly recommends measuring and checking all valve guides post-installation. Verifying that they meet the correct OE-recommended clearance specifications ensures that the valve stem has the precise room it needs to expand under heat without binding. By taking this extra step, you safeguard your engine against premature wear and ensure your valvetrain remains as reliable as the day it left the factory.
Specifications:
- Type: 1-SR
- I.D: 0.3160
- O.D: 0.5528
- Length: 2.052
- Material: Iron
Note:
- Qty of 6 exhaust valve guides required for 5.9L 6BT.
- Qty of 4 exhaust valve guides required for 3.9L 4BT.
