Thumbnail Filmstrip of 5.9 Cummins Special Alloy Exhaust Valve Guide SBI 140-8178SA Images

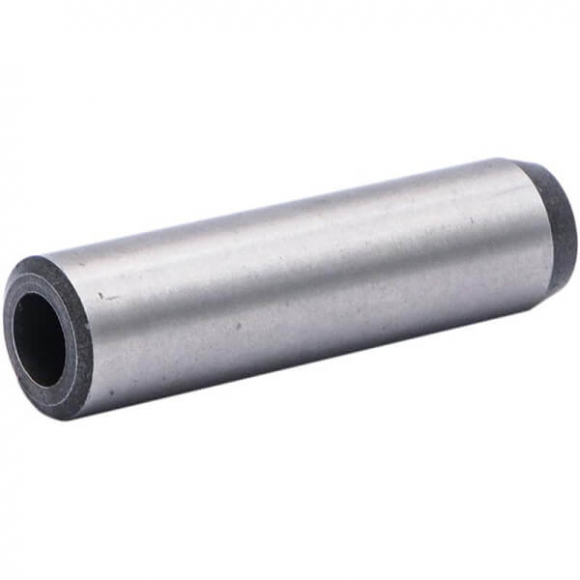

The SBI Exhaust Valve Guide (Special Alloy) 140-8178SA is an elite metallurgical solution designed to address the unique challenges of the Dodge 5.9L and 3.9L 4BT diesel engines. The exhaust side of a diesel head is a brutal environment characterized by extreme thermal cycling and high pressures. This "Special Alloy" version goes beyond standard cast iron; it is a proprietary design engineered to combat the reduced lubricity of modern Ultra Low Sulfur Diesel (ULSD). By utilizing a high-strength alloy enhanced with specialized surface and heat treatments, these guides offer a hardened, low-friction surface that prevents the premature "necking" and wear often seen in older diesel applications running today's refined fuels.
- Proprietary Special Alloy: Forged from a high-strength material specifically chosen for its ability to withstand the dry, abrasive nature of modern ULSD fuels.
- Advanced Thermal Treatments: Features specialized heat and surface treatments that increase surface hardness, drastically reducing the friction between the guide and the exhaust valve stem.
- Precision Direct-Fit Machining: Manufactured to the highest industry standards and specified tolerances, ensuring a seamless press-fit into the cylinder head guide bore.
- Wear-Resistance Technology: Specifically proven to mitigate the accelerated wear issues common in vintage 4BT and 5.9L Cummins heads converted to modern fuel standards.
- Sold Individually: Provides builders the flexibility to perform targeted repairs or a complete, high-performance valvetrain overhaul.
Precision installation is the key to unlocking the full potential of these special alloy guides. Because these components are installed via an interference fit, the guide’s inner diameter can experience slight crushing or distortion as it is pressed into the cylinder head. To ensure your engine's longevity and peak performance, it is vital to follow SBI's recommendation: always check the inner diameter clearance after installation to confirm it meets the correct OE-recommended specifications. This simple verification prevents the valve stem from binding as it expands under heat, effectively eliminating the risk of catastrophic valve stem seizure. Whether you are building a high-boost 12-valve or refreshing a reliable 4BT swap, the 140-8178SA provides the advanced material science required for the next generation of diesel endurance.
Specifications:
- Type: 1-SR
- I.D: 0.3160
- O.D: 0.5528
- Length: 2.052
- Material: Iron
Note:
- Qty of 6 exhaust valve guides required for 5.9L 6BT.
- Qty of 4 exhaust valve guides required for 3.9L 4BT.
The SBI Exhaust Valve Guide (Special Alloy) 140-8178SA is an elite metallurgical solution designed to address the unique challenges of the Dodge 5.9L and 3.9L 4BT diesel engines. The exhaust side of a diesel head is a brutal environment characterized by extreme thermal cycling and high pressures. This "Special Alloy" version goes beyond standard cast iron; it is a proprietary design engineered to combat the reduced lubricity of modern Ultra Low Sulfur Diesel (ULSD). By utilizing a high-strength alloy enhanced with specialized surface and heat treatments, these guides offer a hardened, low-friction surface that prevents the premature "necking" and wear often seen in older diesel applications running today's refined fuels.
Proprietary Special Alloy: Forged from a high-strength material specifically chosen for its ability to withstand the dry, abrasive nature of modern ULSD fuels.
Advanced Thermal Treatments: Features specialized heat and surface treatments that increase surface hardness, drastically reducing the friction between the guide and the exhaust valve stem.
Precision Direct-Fit Machining: Manufactured to the highest industry standards and specified tolerances, ensur[...]
The SBI Exhaust Valve Guide (Special Alloy) 140-8178SA is an elite metallurgical solution designed to address the unique challenges of the Dodge 5.9L and 3.9L 4BT diesel engines. The exhaust side of a diesel head is a brutal environment characterized by extreme thermal cycling and high pressures. This "Special Alloy" version goes beyond standard cast iron; it is a proprietary design engineered to combat the reduced lubricity of modern Ultra Low Sulfur Diesel (ULSD). By utilizing a high-strength alloy enhanced with specialized surface and heat treatments, these guides offer a hardened, low-friction surface that prevents the premature "necking" and wear often seen in older diesel applications running today's refined fuels.
- Proprietary Special Alloy: Forged from a high-strength material specifically chosen for its ability to withstand the dry, abrasive nature of modern ULSD fuels.
- Advanced Thermal Treatments: Features specialized heat and surface treatments that increase surface hardness, drastically reducing the friction between the guide and the exhaust valve stem.
- Precision Direct-Fit Machining: Manufactured to the highest industry standards and specified tolerances, ensuring a seamless press-fit into the cylinder head guide bore.
- Wear-Resistance Technology: Specifically proven to mitigate the accelerated wear issues common in vintage 4BT and 5.9L Cummins heads converted to modern fuel standards.
- Sold Individually: Provides builders the flexibility to perform targeted repairs or a complete, high-performance valvetrain overhaul.
Precision installation is the key to unlocking the full potential of these special alloy guides. Because these components are installed via an interference fit, the guide’s inner diameter can experience slight crushing or distortion as it is pressed into the cylinder head. To ensure your engine's longevity and peak performance, it is vital to follow SBI's recommendation: always check the inner diameter clearance after installation to confirm it meets the correct OE-recommended specifications. This simple verification prevents the valve stem from binding as it expands under heat, effectively eliminating the risk of catastrophic valve stem seizure. Whether you are building a high-boost 12-valve or refreshing a reliable 4BT swap, the 140-8178SA provides the advanced material science required for the next generation of diesel endurance.
Specifications:
- Type: 1-SR
- I.D: 0.3160
- O.D: 0.5528
- Length: 2.052
- Material: Iron
Note:
- Qty of 6 exhaust valve guides required for 5.9L 6BT.
- Qty of 4 exhaust valve guides required for 3.9L 4BT.
