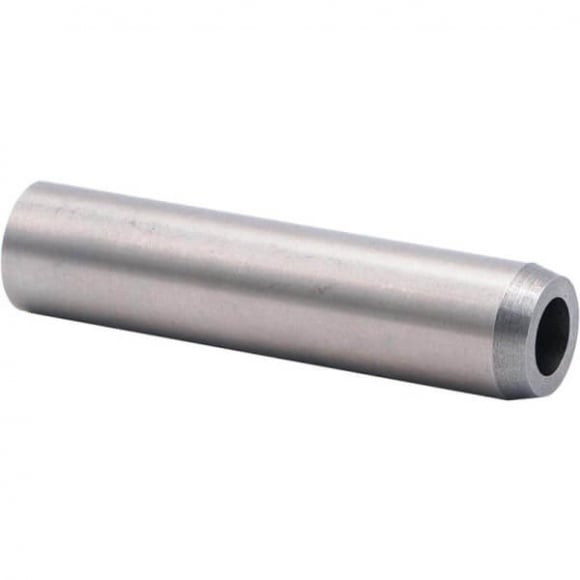

The SBI Intake Valve Guide 140-8177 is a precision-engineered solution designed to restore the valvetrain stability of the legendary Dodge 5.9L Cummins and 3.9L 4BT diesel engines. The intake valve guide plays a silent but pivotal role in your engine's health; it is the track that ensures the intake valve hits the seat with perfect concentricity every time. Over hundreds of thousands of miles, factory guides can wear down, leading to "valve wobble" that causes uneven seat wear and oil consumption. By upgrading to this high-quality replacement, you are ensuring your engine maintains the airtight seal required for the massive boost and compression these diesel powerhouses are known for.
- Premium Material Integrity: Manufactured to the highest industry standards using durable alloys that provide excellent heat dissipation and natural lubricity.
- Direct-Fit Engineering: Machined to exact specified tolerances, allowing the guide to be installed directly into the cylinder head guide bore with minimal additional prep work.
- Optimized for Cummins Engines: Specifically tailored for the unique demands of the 5.9L and 3.9L 4BT platforms to ensure long-term structural reliability.
- Seizure Prevention: Designed to work within strict clearance parameters to protect against premature valve stem wear and catastrophic mechanical seizure.
- Individual Availability: Sold individually to give you the flexibility to address a single-cylinder issue or perform a complete, professional-grade head restoration.
An educational tip for a successful build: during the press-fit installation, the valve guide’s inner diameter can actually be slightly crushed or distorted due to the interference fit with the cylinder head. To ensure professional-grade results and prevent engine failure, SBI strongly recommends checking all valve guides after installation to confirm they meet the correct OEM-recommended clearance specifications. This extra step ensures the valve stem moves freely without binding, safeguarding your investment and keeping your 4BT or 5.9L running with the reliability that Cummins owners demand. Whether you are refreshing a high-mileage work truck or a performance swap, the 140-8177 provides the precision foundation your valvetrain needs.
Specifications:
- Type: 1-SR
- I.D: 0.3162
- O.D: 0.5528
- Length: 2.382
- Material: Iron
Note:
- Qty of 6 intake valve guides required for 5.9L 6BT.
- Qty of 4 intake valve guides required for 3.9L 4BT.
