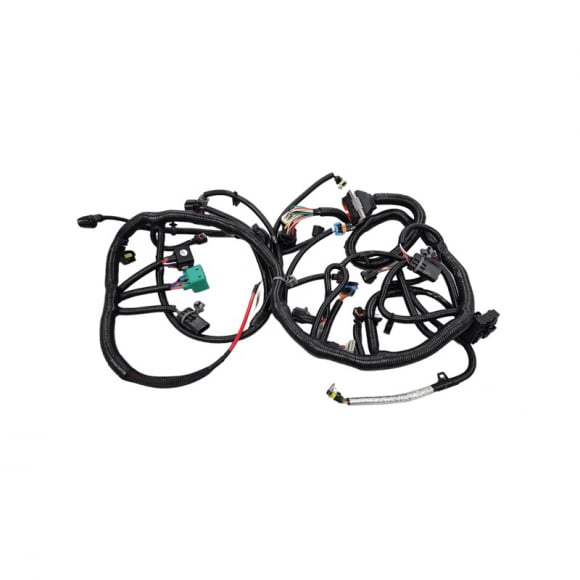

The Atlas Diesel Components 4C3Z-12B637-AA main engine wiring harness fits 2003-2004 6.0L Powerstroke F-Series trucks built 9/29/2003 and later, plus 2004 Excursion models equipped with a fuel heater. Years of heat cycling leave the factory harness brittle, chafed and spliced, which shows up as hard starts, stalls and random sensor codes that are hard to trace.

This harness replaces the entire worn assembly in one piece, so every circuit is restored at once instead of patching individual wires. It is built as a direct plug-in replacement for the Ford 4C3Z-12B637-AA harness. No core required.

Key Features & Benefits

• Direct OE Replacement: Built to replace Ford 4C3Z-12B637-AA with factory connector locations.
• Complete Assembly: Restores every main engine circuit at once rather than chasing individual faults.
• Build-Date Specific: Matched to the early 6.0L build window for correct connector fit.
• Fixes Damaged Wiring: A clean solution for heat-damaged or rodent-chewed harnesses.

Technical Specifications

• Manufacturer: Atlas Diesel Components
• Part Number / SKU: 4C3Z-12B637-AA
• Product Type: Engine Wiring Harness
• Cross-Reference: Ford 4C3Z-12B637-AA, 4C3Z12B637AA
• Truck Compatibility: 2003-2004 Ford F-Series (built 9/29/2003 and later), 2004 Ford Excursion with fuel heater
• Engine Platform: 6.0L Powerstroke
• Core Requirement: No core required

Vehicle Fitment & Technical Installation Notes

Fits 2003-2004 Ford F-Series 6.0L Powerstroke trucks built 9/29/2003 and later and 2004 Ford Excursion 6.0L Powerstroke models with a fuel heater. Trucks built after 11/4/2004 use a different harness.

Installation Tip: Confirm the engine build date on the engine or door-jamb label before ordering, and label each connector as the old harness comes off. Many technicians replace the FICM harness at the same time since it is exposed to the same heat.
