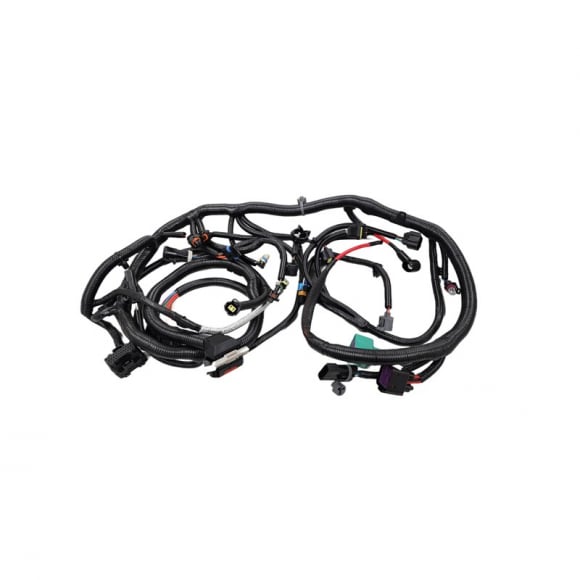

The Atlas Diesel Components 4C3Z-12B637-CA main engine wiring harness fits 2003-2004 6.0L Powerstroke F-Series trucks built 9/23/2003 and later and 2004-2005 Excursion models, all without the fuel heater circuit. Constant heat cycling under the hood leaves the original harness cracked, chafed and patched, leading to hard starts, stalling and intermittent sensor codes that waste diagnostic time.
This harness swaps out the complete worn assembly in one piece, restoring every main engine circuit at once instead of repairing wires one at a time. It is a direct plug-in replacement for Ford 4C3Z-12B637-CA, the no-fuel-heater version of the early 6.0L harness. No core required.
Key Features & Benefits
- Direct OE Replacement: Replaces Ford 4C3Z-12B637-CA with factory connector placement.
- No Fuel Heater Circuit: Correct layout for trucks built without the fuel heater, unlike the 4C3Z-12B637-AA harness.
- Complete Assembly: Renews every main engine circuit in one job rather than chasing single faults.
- Fixes Damaged Wiring: A clean repair for heat-damaged or rodent-chewed harnesses.
Technical Specifications
- Manufacturer: Atlas Diesel Components
- Part Number / SKU: 4C3Z-12B637-CA
- Product Type: Engine Wiring Harness
- Cross-Reference: Ford 4C3Z-12B637-CA, 4C3Z12B637CA
- Fuel Heater Circuit: Not included (for trucks without fuel heater)
- Truck Compatibility: 2003-2004 Ford F-Series (built 9/23/2003 and later), 2004-2005 Ford Excursion, without fuel heater
- Engine Platform: 6.0L Powerstroke
- Core Requirement: No core required
Vehicle Fitment & Technical Installation Notes
Fits 2003-2004 Ford F-Series 6.0L Powerstroke trucks built 9/23/2003 and later and 2004-2005 Ford Excursion 6.0L Powerstroke models, without the fuel heater circuit. Trucks equipped with a fuel heater use the 4C3Z-12B637-AA harness instead.
Installation Tip: Check for a fuel heater connector on the existing harness and confirm the build date on the door-jamb label before ordering. Tag each connector as the old harness comes off so the new one routes the same way.
