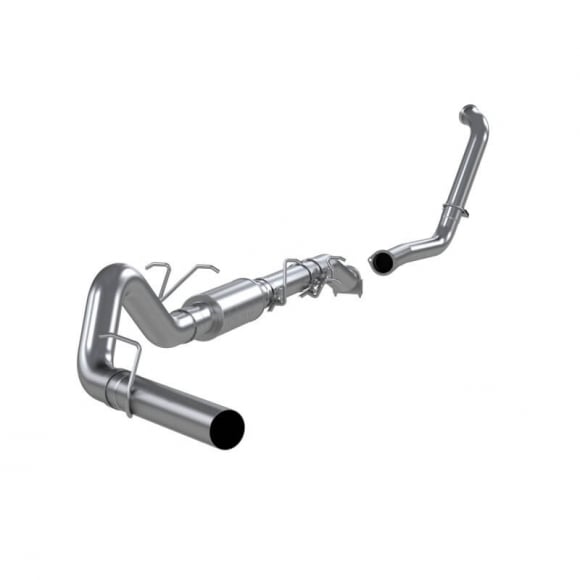

The MBRP S6206P (Armor Lite / Performance Series) is a heavy-duty 4-inch turbo-back single-exit exhaust system engineered for 2003–2007 Ford F-250 and F-350 Super Duty trucks equipped with the 6.0L Powerstroke diesel engine. Constructed from heavy-gauge aluminized steel with smooth mandrel-bent 4-inch tubing, this system delivers maximum exhaust flow while retaining the factory catalytic converter and utilizing a high-flow chambered performance muffler for a deep, moderate exhaust tone without severe in-cab drone. MBRP equips this kit with a 3.5-inch two-piece turbo downpipe that transitions to 4-inch intermediate tubing, an over-axle tailpipe, and OE-style welded hanger brackets that slide directly into factory chassis rubber mounts.
High exhaust gas temperatures (EGTs) while towing heavy trailers, severe turbo backpressure caused by the pinched factory stamped downpipe and restrictive stock muffler, sluggish low-end turbo spool, and muffled exhaust volume are what this system eliminates. The factory Ford 6.0L exhaust traps intense thermal energy directly behind the variable geometry turbocharger (VGT), driving up engine bay and cylinder head temperatures under load. The MBRP S6206P opens up exhaust pathways, dropping peak EGTs by up to 100–200°F, reducing backpressure on the turbine wheel, enhancing throttle response, and delivering a clean, aggressive street tone while controlling cab resonance. It is a complete 4-inch turbo-back exhaust kit including the downpipe, catalytic converter adapter pipes, high-flow performance muffler, over-axle pipe, tailpipe, and saddle clamps; exhaust tips and catalytic converter delete pipes are sold separately.
It fits 2003–2007 Ford F-250 and F-350 Super Duty pickup trucks equipped with the 6.0L Powerstroke diesel engine across SuperCab (Extended Cab) and Crew Cab configurations with 6'9" Short Beds or 8' Long Beds that retain the factory catalytic converter (does not fit Regular Cab models, Cab & Chassis configurations, or Ford Excursions).
Fitment
- 2003–2007 Ford F-250 Super Duty 6.0L Powerstroke (SuperCab & Crew Cab; Short & Long Bed)
- 2003–2007 Ford F-350 Super Duty 6.0L Powerstroke (SuperCab & Crew Cab; Short & Long Bed)
- Fits Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) pickup configurations
- Complete 4-inch turbo-back replacement exhaust system (retains factory catalytic converter)
- Includes mandrel-bent 3.5" to 4" two-piece downpipe for clearance and velocity
- Constructed from heavy-gauge aluminized steel tubing (Armor Lite / Performance Series)
- High-flow chambered performance muffler lowers EGTs while providing a moderate, drone-free tone
- Single passenger-side exit behind the rear tire (no tip included; bare 4" tailpipe exit)
- OE-style welded hangers mount directly into factory rubber chassis isolators
- Complete exhaust system kit including heavy-duty clamps and hardware
Support the vehicle securely on a lift or heavy-duty jack stands and disconnect both negative battery cables. Spray penetrating lubricant liberally onto all factory rubber isolator hangers, the catalytic converter flange bolts, and the turbo downpipe V-band clamp behind the turbo turbine outlet. Cut the factory downpipe using a reciprocating saw to facilitate removal from under the truck, then loosen the factory V-band clamp to extract the upper downpipe section from the engine bay. Unbolt the catalytic converter from the factory exhaust, unhook the rubber hangers, and lower the original intermediate pipe, muffler, and tailpipe assembly out from under the truck. Install the upper section of the MBRP two-piece downpipe onto the turbo turbine discharge flange, loosely securing the factory V-band clamp before joining the lower downpipe section. Reinstall the factory catalytic converter to the MBRP downpipe adapter, attach the intermediate extension pipe (trimmed to length according to cab and bed size per instructions), and slide the chambered performance muffler into place. Guide the over-axle and tailpipe sections over the rear axle housing, inserting the welded hangers directly into the OEM rubber mounts. Adjust all pipe joints to ensure a minimum of 1 inch of clearance around brake lines, shock absorbers, fuel tank shielding, and the spare tire, then torque all heavy-duty band clamps from the turbo back to 35–40 ft-lbs.
