Thumbnail Filmstrip of 2003-2007 6.0L Powerstroke 4 Inch Turbo Back Single Side Aluminized No Muffler MBRP S6206PLM Images

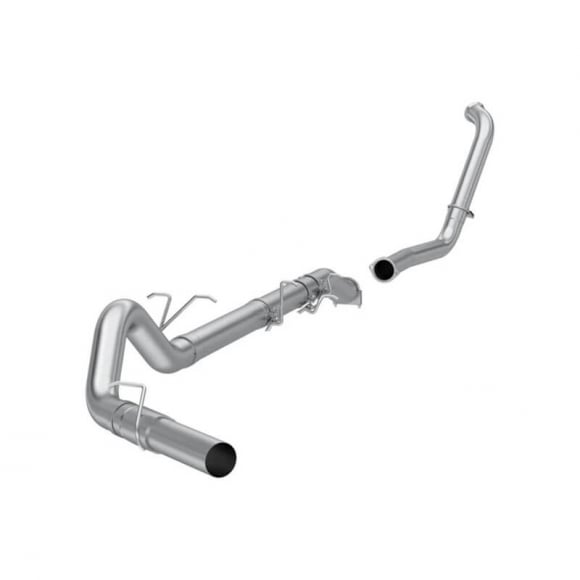

The MBRP S6206PLM (Armor Lite / PLM Series) is a heavy-duty 4-inch turbo-back single-exit exhaust system engineered for 2003–2007 Ford F-250 and F-350 Super Duty trucks equipped with the 6.0L Powerstroke diesel engine. Built from heavy-gauge aluminized steel with smooth mandrel-bent 4-inch tubing, this straight-pipe configuration eliminates internal flow restrictions while retaining the factory catalytic converter to maintain emissions equipment. MBRP outfits this system with a two-piece turbo downpipe, an intermediate extension pipe designed to fit the stock cat, a muffler-delete straight-through pipe, an over-axle tailpipe, and OE-style welded hanger brackets that slip directly into factory chassis rubber mounts.
High exhaust gas temperatures (EGTs) while towing, extreme exhaust backpressure caused by the flattened factory stamped downpipe and dense OEM baffle muffler, sluggish turbo spool, and restrictive factory pipe bends are what this system eliminates. The factory Ford 6.0L exhaust traps intense thermal energy directly behind the variable geometry turbocharger (VGT), elevating cylinder head temperatures and choking horsepower under heavy loads. The MBRP S6206PLM opens up exhaust pathways, dropping peak EGTs by up to 100–200°F, reducing backpressure on the turbine wheel, speeding up turbo spool, and unleashing the raw, aggressive 6.0L variable-vane exhaust sound. It is a complete 4-inch turbo-back muffler-delete exhaust kit including the downpipe, converter adapter pipes, over-axle pipe, tailpipe, and saddle clamps; exhaust tips and catalytic converter delete pipes are sold separately.
It fits 2003–2007 Ford F-250 and F-350 Super Duty pickup trucks equipped with the 6.0L Powerstroke diesel engine across SuperCab (Extended Cab) and Crew Cab configurations with 6'9" Short Beds or 8' Long Beds that retain the factory catalytic converter (does not fit Regular Cab models, Cab & Chassis configurations, or Ford Excursions).
Fitment
- 2003–2007 Ford F-250 Super Duty 6.0L Powerstroke (SuperCab & Crew Cab; Short & Long Bed)
- 2003–2007 Ford F-350 Super Duty 6.0L Powerstroke (SuperCab & Crew Cab; Short & Long Bed)
- Fits Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) pickup configurations
- Complete 4-inch turbo-back replacement exhaust system (retains factory catalytic converter)
- Includes mandrel-bent 3.5" to 4" two-piece downpipe for easy clearance and maximum gas velocity
- Fabricated from heavy-gauge aluminized steel tubing (Armor Lite / PLM Series)
- Straight-pipe muffler delete design provides maximum flow, lowest EGTs, and an aggressive race sound
- Single passenger-side exit behind the rear tire (no tip included; bare 4" tailpipe exit)
- OE-style welded hangers bolt directly into factory chassis rubber isolators
- Complete exhaust system kit including heavy-duty clamps and hardware
Support the vehicle securely on a lift or heavy-duty jack stands and disconnect both negative battery cables. Spray penetrating lubricant liberally onto all factory rubber isolator hangers, the catalytic converter flange bolts, and the turbo downpipe V-band clamp behind the turbo turbine outlet. Cut the factory downpipe using a reciprocating saw to remove it from under the truck, then loosen the factory V-band clamp to extract the upper downpipe section from the engine bay. Unbolt the catalytic converter from the factory exhaust, unhook the rubber hangers, and lower the original intermediate pipe, muffler, and tailpipe assembly out from under the truck. Install the upper section of the MBRP two-piece downpipe onto the turbo turbine discharge flange, loosely securing the factory V-band clamp before joining the lower downpipe section. Reinstall the factory catalytic converter to the MBRP downpipe adapter, attach the intermediate extension pipe (trimmed to length according to cab and bed size per instructions), and slide the muffler-delete pipe into place. Guide the over-axle and tailpipe sections over the rear axle housing, inserting the welded hangers directly into the OEM rubber mounts. Adjust all pipe joints to ensure a minimum of 1 inch of clearance around brake lines, shock absorbers, fuel tank shielding, and the spare tire, then torque all heavy-duty band clamps from the turbo back to 35–40 ft-lbs.
The MBRP S6206PLM (Armor Lite / PLM Series) is a heavy-duty 4-inch turbo-back single-exit exhaust system engineered for 2003–2007 Ford F-250 and F-350 Super Duty trucks equipped with the 6.0L Powerstroke diesel engine. Built from heavy-gauge aluminized steel with smooth mandrel-bent 4-inch tubing, this straight-pipe configuration eliminates internal flow restrictions while retaining the factory catalytic converter to maintain emissions equipment. MBRP outfits this system with a two-piece turbo downpipe, an intermediate extension pipe designed to fit the stock cat, a muffler-delete straight-through pipe, an over-axle tailpipe, and OE-style welded hanger brackets that slip directly into factory chassis rubber mounts.
High exhaust gas temperatures (EGTs) while towing, extreme exhaust backpressure caused by the flattened factory stamped downpipe and dense OEM baffle muffler, sluggish turbo spool, and restrictive factory pipe bends are what this system eliminates. The factory Ford 6.0L exhaust traps intense thermal energy directly behind the variable geometry turbocharger (VGT), elevating cylinder head temperatures and choking horsepower under heavy loads. The MBRP S6206PLM ope[...]
The MBRP S6206PLM (Armor Lite / PLM Series) is a heavy-duty 4-inch turbo-back single-exit exhaust system engineered for 2003–2007 Ford F-250 and F-350 Super Duty trucks equipped with the 6.0L Powerstroke diesel engine. Built from heavy-gauge aluminized steel with smooth mandrel-bent 4-inch tubing, this straight-pipe configuration eliminates internal flow restrictions while retaining the factory catalytic converter to maintain emissions equipment. MBRP outfits this system with a two-piece turbo downpipe, an intermediate extension pipe designed to fit the stock cat, a muffler-delete straight-through pipe, an over-axle tailpipe, and OE-style welded hanger brackets that slip directly into factory chassis rubber mounts.
High exhaust gas temperatures (EGTs) while towing, extreme exhaust backpressure caused by the flattened factory stamped downpipe and dense OEM baffle muffler, sluggish turbo spool, and restrictive factory pipe bends are what this system eliminates. The factory Ford 6.0L exhaust traps intense thermal energy directly behind the variable geometry turbocharger (VGT), elevating cylinder head temperatures and choking horsepower under heavy loads. The MBRP S6206PLM opens up exhaust pathways, dropping peak EGTs by up to 100–200°F, reducing backpressure on the turbine wheel, speeding up turbo spool, and unleashing the raw, aggressive 6.0L variable-vane exhaust sound. It is a complete 4-inch turbo-back muffler-delete exhaust kit including the downpipe, converter adapter pipes, over-axle pipe, tailpipe, and saddle clamps; exhaust tips and catalytic converter delete pipes are sold separately.
It fits 2003–2007 Ford F-250 and F-350 Super Duty pickup trucks equipped with the 6.0L Powerstroke diesel engine across SuperCab (Extended Cab) and Crew Cab configurations with 6'9" Short Beds or 8' Long Beds that retain the factory catalytic converter (does not fit Regular Cab models, Cab & Chassis configurations, or Ford Excursions).
Fitment
- 2003–2007 Ford F-250 Super Duty 6.0L Powerstroke (SuperCab & Crew Cab; Short & Long Bed)
- 2003–2007 Ford F-350 Super Duty 6.0L Powerstroke (SuperCab & Crew Cab; Short & Long Bed)
- Fits Single Rear Wheel (SRW) and Dual Rear Wheel (DRW) pickup configurations
- Complete 4-inch turbo-back replacement exhaust system (retains factory catalytic converter)
- Includes mandrel-bent 3.5" to 4" two-piece downpipe for easy clearance and maximum gas velocity
- Fabricated from heavy-gauge aluminized steel tubing (Armor Lite / PLM Series)
- Straight-pipe muffler delete design provides maximum flow, lowest EGTs, and an aggressive race sound
- Single passenger-side exit behind the rear tire (no tip included; bare 4" tailpipe exit)
- OE-style welded hangers bolt directly into factory chassis rubber isolators
- Complete exhaust system kit including heavy-duty clamps and hardware
Support the vehicle securely on a lift or heavy-duty jack stands and disconnect both negative battery cables. Spray penetrating lubricant liberally onto all factory rubber isolator hangers, the catalytic converter flange bolts, and the turbo downpipe V-band clamp behind the turbo turbine outlet. Cut the factory downpipe using a reciprocating saw to remove it from under the truck, then loosen the factory V-band clamp to extract the upper downpipe section from the engine bay. Unbolt the catalytic converter from the factory exhaust, unhook the rubber hangers, and lower the original intermediate pipe, muffler, and tailpipe assembly out from under the truck. Install the upper section of the MBRP two-piece downpipe onto the turbo turbine discharge flange, loosely securing the factory V-band clamp before joining the lower downpipe section. Reinstall the factory catalytic converter to the MBRP downpipe adapter, attach the intermediate extension pipe (trimmed to length according to cab and bed size per instructions), and slide the muffler-delete pipe into place. Guide the over-axle and tailpipe sections over the rear axle housing, inserting the welded hangers directly into the OEM rubber mounts. Adjust all pipe joints to ensure a minimum of 1 inch of clearance around brake lines, shock absorbers, fuel tank shielding, and the spare tire, then torque all heavy-duty band clamps from the turbo back to 35–40 ft-lbs.
