Thumbnail Filmstrip of 6.7 Cummins Thermal Bypass Valve Up-Grade ATS 310-005-2464 Images
Elevate your truck's longevity and performance with the ATS 310-005-2464 Thermal Bypass Valve Up-Grade specifically engineered for 6.7 Cummins engines spanning the 2019-2023 model years equipped with either the 68-RFE or Aisin AS69RC transmission. This upgrade addresses a critical design flaw in the factory cooling system that can lead to premature transmission failure. The original design incorporates a thermal bypass valve intended to accelerate transmission warm-up during cold operation by temporarily bypassing the transmission cooler. However, real-world operation reveals a significant issue: this factory bypass valve is prone to leaking or sticking in the bypass position. When this occurs, the transmission cooler is effectively eliminated from the cooling circuit, preventing proper heat dissipation and causing transmission fluid temperatures to dangerously rise, resulting in severe, long-term damage to your transmission.
- Compatibility: 6.7 Cummins (2019-2023) with 68-RFE or Aisin AS69RC Transmissions
- Problem Addressed: Failure-prone factory thermal bypass valve that leaks or sticks, eliminating the transmission cooler from the circuit.
- Solution: Replaces the faulty original component with a robust ATS cooler block.
- Benefit: Ensures 100% of transmission cooler flow is routed through the cooler, guaranteeing maximum heat transfer and substantially reducing transmission temperatures.
The ATS cooler block is the essential solution, engineered to directly replace the flawed factory component. By eliminating the problematic bypass valve entirely, this upgrade guarantees that 100 percent of the transmission cooler flow is always forced through the transmission cooler. This simple but profound mechanical change restores the cooling system to its intended, full-capacity operation, resulting in a demonstrable and substantial reduction in overall transmission temperatures. Investing in the ATS Thermal Bypass Valve Up-Grade is a crucial step in safeguarding your high-performance Cummins truck, ensuring optimal transmission health, and maximizing the service life of your 68-RFE or Aisin AS69RC transmission.

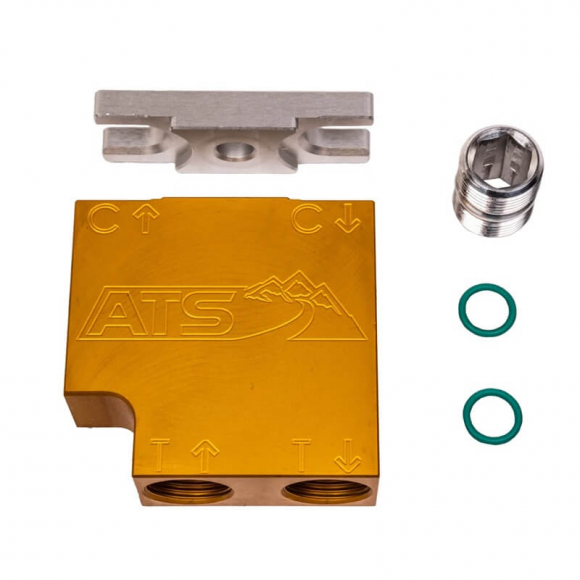

Includes:
- ATS Thermal Bypass
- Cooler Block Clamp Plate
- Billet Filter Coupler
Elevate your truck's longevity and performance with the ATS 310-005-2464 Thermal Bypass Valve Up-Grade specifically engineered for 6.7 Cummins engines spanning the 2019-2023 model years equipped with either the 68-RFE or Aisin AS69RC transmission. This upgrade addresses a critical design flaw in the factory cooling system that can lead to premature transmission failure. The original design incorporates a thermal bypass valve intended to accelerate transmission warm-up during cold operation by temporarily bypassing the transmission cooler. However, real-world operation reveals a significant issue: this factory bypass valve is prone to leaking or sticking in the bypass position. When this occurs, the transmission cooler is effectively eliminated from the cooling circuit, preventing proper heat dissipation and causing transmission fluid temperatures to dangerously rise, resulting in severe, long-term damage to your transmission.
Compatibility: 6.7 Cummins (2019-2023) with 68-RFE or Aisin AS69RC Transmissions
Problem Addressed: Failure-prone factory thermal bypass valve that leaks or sticks, eliminating the transmission cooler from the circuit.
Solution: Replaces the f[...]
Elevate your truck's longevity and performance with the ATS 310-005-2464 Thermal Bypass Valve Up-Grade specifically engineered for 6.7 Cummins engines spanning the 2019-2023 model years equipped with either the 68-RFE or Aisin AS69RC transmission. This upgrade addresses a critical design flaw in the factory cooling system that can lead to premature transmission failure. The original design incorporates a thermal bypass valve intended to accelerate transmission warm-up during cold operation by temporarily bypassing the transmission cooler. However, real-world operation reveals a significant issue: this factory bypass valve is prone to leaking or sticking in the bypass position. When this occurs, the transmission cooler is effectively eliminated from the cooling circuit, preventing proper heat dissipation and causing transmission fluid temperatures to dangerously rise, resulting in severe, long-term damage to your transmission.
- Compatibility: 6.7 Cummins (2019-2023) with 68-RFE or Aisin AS69RC Transmissions
- Problem Addressed: Failure-prone factory thermal bypass valve that leaks or sticks, eliminating the transmission cooler from the circuit.
- Solution: Replaces the faulty original component with a robust ATS cooler block.
- Benefit: Ensures 100% of transmission cooler flow is routed through the cooler, guaranteeing maximum heat transfer and substantially reducing transmission temperatures.
The ATS cooler block is the essential solution, engineered to directly replace the flawed factory component. By eliminating the problematic bypass valve entirely, this upgrade guarantees that 100 percent of the transmission cooler flow is always forced through the transmission cooler. This simple but profound mechanical change restores the cooling system to its intended, full-capacity operation, resulting in a demonstrable and substantial reduction in overall transmission temperatures. Investing in the ATS Thermal Bypass Valve Up-Grade is a crucial step in safeguarding your high-performance Cummins truck, ensuring optimal transmission health, and maximizing the service life of your 68-RFE or Aisin AS69RC transmission.
Includes:
- ATS Thermal Bypass
- Cooler Block Clamp Plate
- Billet Filter Coupler
