Thumbnail Filmstrip of 6.7 Powerstroke Intake Manifold and Turbo Inlet Kit (Polished) PPE 315054030 Images
Ford 6.7L Power Stroke Zilla Intake Manifold and Turbo Inlet Kit Install Guide
Tags: zilla intake manifold,turbo inlet kit,PPE 315054030,2020-2025 Ford 6.7L Powerstroke,performance intake manifold,turbo upgrade,polished finish,diesel performance,Ford Powerstroke,increased airflow,truck performance,PPE Power,intake manifold upgrade,turbo inlet upgrade,Ford diesel,Powerstroke mods,high flow intake,engine performance,diesel truck,aftermarket intake,PPE Zilla,easy install

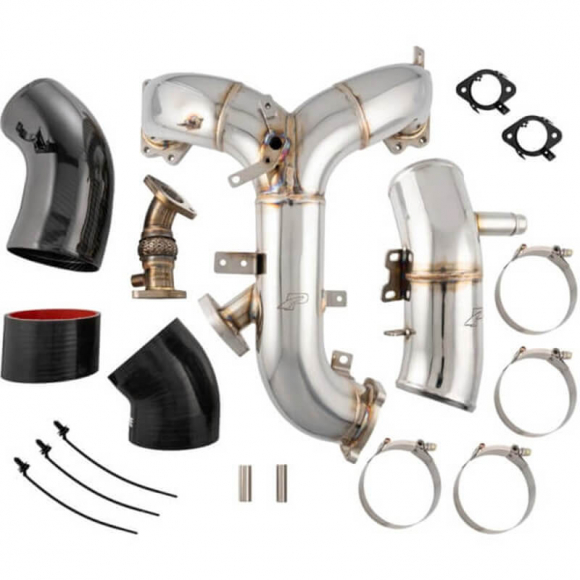

The PPE Performance Intake Manifold & Turbo Inlet Kit (315054030) is a comprehensive solution for the well-documented airflow bottlenecks found in the 2020-2026 Ford 6.7L Powerstroke engine. While the factory cast aluminum intake bridge serves its basic purpose, its internal architecture is inherently restrictive. The OE manifold features passages narrower than a 2.5-inch tube and an EGR inlet swirl positioned directly in the center of the flow path. This configuration creates significant turbulence, which slows air velocity and starves the cylinder heads of the oxygen volume required for peak combustion. By replacing these factory constraints with high-flow stainless steel architecture, this kit optimizes the engine's volumetric efficiency for both Standard-Output and 500 HP High-Output variants.
- Superior Airflow Volume: Achieves a 69% higher maximum flow rate compared to the stock manifold, utilizing large 3.25-inch stainless steel tubing and hydroformed runners.
- Optimized EGR Integration: Features a repositioned and angled EGR inlet port with a redesigned stainless steel EGR pipe, ensuring even distribution of gases to both cylinder banks without obstructing fresh air.
- High-Efficiency Turbo Inlet: Includes a 4-inch stainless steel turbo inlet and a 100% dry-carbon-fiber airbox duct that maintains a fully round shape to reduce frictional losses.
- Turbulence Reduction: Eliminates the restrictive factory EGR boss and the plastic two-chamber turbo resonator, resulting in smoother airflow and an enhanced turbo sound.
- Heavy-Duty Construction: Includes 5-ply silicone couplers with an oil-resistant inner layer designed to handle higher boost pressures consistently.
- Seamless OEM Integration: Retains all factory mounting points, sensor clips, dipstick brackets, and coolant hose connections for a precise, "no-compromise" fitment.
- Complete Installation Hardware: Comes with lower manifold gaskets, EGR pipe gaskets, and a MAP sensor shield to ensure a professional-grade installation.
Beyond the raw performance gains, this polished kit is engineered for long-term reliability and ease of ownership. Unlike the factory inlet, which forces air through inefficient oval transitions, the PPE components maintain a constant circular profile to minimize drag. The removal of the stock plastic resonator not only sheds unnecessary weight but also streamlines the path to the turbocharger. Despite these radical internal improvements, the exterior design remains grounded in practical engineering; every wiring harness and coolant line remains supported, and the MAP sensor is kept in its factory-specified location. This balance of high-flow stainless steel and carbon fiber components provides a durable, high-pressure-capable upgrade that transforms the breathing characteristics of your Powerstroke.
Note:
- For 6.7L High-Output applications, PPE Turbo Coolant Lines Relocation Kit Is Required.
- The PPE Performance Intake Manifold & Turbo Inlet Kit is only compatible with the factory air box. The turbo inlet has been redesigned to maximize air flow by maintaining a 4" diameter from air box to turbo, thus ditching the factory restrictive oval shape inlet and resonator.
The PPE Performance Intake Manifold & Turbo Inlet Kit (315054030) is a comprehensive solution for the well-documented airflow bottlenecks found in the 2020-2026 Ford 6.7L Powerstroke engine. While the factory cast aluminum intake bridge serves its basic purpose, its internal architecture is inherently restrictive. The OE manifold features passages narrower than a 2.5-inch tube and an EGR inlet swirl positioned directly in the center of the flow path. This configuration creates significant turbulence, which slows air velocity and starves the cylinder heads of the oxygen volume required for peak combustion. By replacing these factory constraints with high-flow stainless steel architecture, this kit optimizes the engine's volumetric efficiency for both Standard-Output and 500 HP High-Output variants.
Superior Airflow Volume: Achieves a 69% higher maximum flow rate compared to the stock manifold, utilizing large 3.25-inch stainless steel tubing and hydroformed runners.
Optimized EGR Integration: Features a repositioned and angled EGR inlet port with a redesigned stainless steel EGR pipe, ensuring even distribution of gases to both cylinder banks without obstructing fr[...]
The PPE Performance Intake Manifold & Turbo Inlet Kit (315054030) is a comprehensive solution for the well-documented airflow bottlenecks found in the 2020-2026 Ford 6.7L Powerstroke engine. While the factory cast aluminum intake bridge serves its basic purpose, its internal architecture is inherently restrictive. The OE manifold features passages narrower than a 2.5-inch tube and an EGR inlet swirl positioned directly in the center of the flow path. This configuration creates significant turbulence, which slows air velocity and starves the cylinder heads of the oxygen volume required for peak combustion. By replacing these factory constraints with high-flow stainless steel architecture, this kit optimizes the engine's volumetric efficiency for both Standard-Output and 500 HP High-Output variants.
- Superior Airflow Volume: Achieves a 69% higher maximum flow rate compared to the stock manifold, utilizing large 3.25-inch stainless steel tubing and hydroformed runners.
- Optimized EGR Integration: Features a repositioned and angled EGR inlet port with a redesigned stainless steel EGR pipe, ensuring even distribution of gases to both cylinder banks without obstructing fresh air.
- High-Efficiency Turbo Inlet: Includes a 4-inch stainless steel turbo inlet and a 100% dry-carbon-fiber airbox duct that maintains a fully round shape to reduce frictional losses.
- Turbulence Reduction: Eliminates the restrictive factory EGR boss and the plastic two-chamber turbo resonator, resulting in smoother airflow and an enhanced turbo sound.
- Heavy-Duty Construction: Includes 5-ply silicone couplers with an oil-resistant inner layer designed to handle higher boost pressures consistently.
- Seamless OEM Integration: Retains all factory mounting points, sensor clips, dipstick brackets, and coolant hose connections for a precise, "no-compromise" fitment.
- Complete Installation Hardware: Comes with lower manifold gaskets, EGR pipe gaskets, and a MAP sensor shield to ensure a professional-grade installation.
Beyond the raw performance gains, this polished kit is engineered for long-term reliability and ease of ownership. Unlike the factory inlet, which forces air through inefficient oval transitions, the PPE components maintain a constant circular profile to minimize drag. The removal of the stock plastic resonator not only sheds unnecessary weight but also streamlines the path to the turbocharger. Despite these radical internal improvements, the exterior design remains grounded in practical engineering; every wiring harness and coolant line remains supported, and the MAP sensor is kept in its factory-specified location. This balance of high-flow stainless steel and carbon fiber components provides a durable, high-pressure-capable upgrade that transforms the breathing characteristics of your Powerstroke.
Note:
- For 6.7L High-Output applications, PPE Turbo Coolant Lines Relocation Kit Is Required.
- The PPE Performance Intake Manifold & Turbo Inlet Kit is only compatible with the factory air box. The turbo inlet has been redesigned to maximize air flow by maintaining a 4" diameter from air box to turbo, thus ditching the factory restrictive oval shape inlet and resonator.
