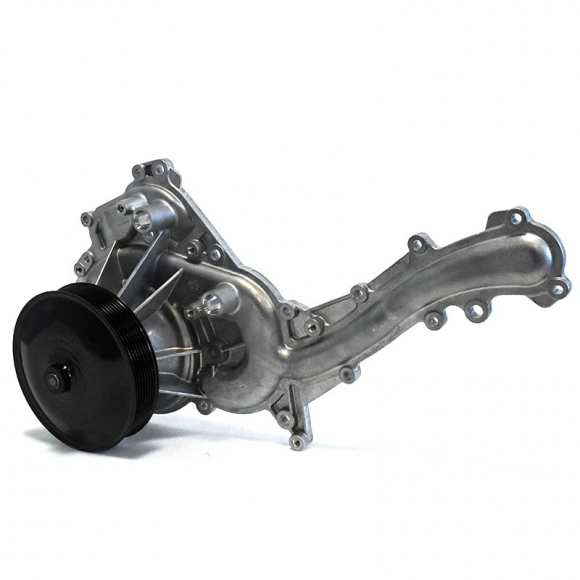

Engineered specifically for 2017 through 2019 Ford F-250, F-350, F-450, and F-550 Super Duty trucks equipped with the 6.7L Powerstroke V8 turbo diesel engine, the Genuine Ford Primary Engine Water Pump Assembly (Part # HC3Z-8501-A / Motorcraft PW-571) restores cooling performance to the engine's primary high-temperature cooling loop. The 6.7L Powerstroke diesel platform utilizes a dual-cooling system: a secondary low-temperature loop for the charge air cooler, fuel cooler, and transmission, and a primary high-temperature circuit dedicated to cooling the engine block, cylinder heads, engine oil cooler, and turbocharger.

Over extended mileage and heavy towing duty cycles, mechanical water pumps experience shaft bearing play, shaft seal weeping from the weep hole, or impeller cavitation erosion. When the primary water pump fails or seeps coolant, the engine quickly suffers from overheating under load, low coolant warnings, and serpentine belt contamination. Built to strict Ford engineering standards, this genuine OEM assembly includes a factory-installed drive pulley and high-temp rubber perimeter gasket, guaranteeing proper belt alignment and a leak-free seal directly out of the box with zero core charge.

Key Features & Benefits

• Genuine Ford OEM / Motorcraft Component: Engineered, manufactured, and tested to meet Ford's factory durability and performance requirements.
• Dual-Cooling Primary Loop Protection: Restores proper circulation for the high-temperature circuit cooling the engine block, cylinder heads, oil cooler, and EGR cooler.
• Pre-Pressed Serpentine Pulley Included: Eliminates the need for specialized pulley puller/press tools by including a pre-installed, factory-balanced pulley.
• Unitized Bearing & Seal Design: Features premium ceramic-faced unitized seals to eliminate premature coolant weeping and shaft play under high belt tension.
• Includes OEM Perimeter Gasket: Comes complete with a factory-grade rubber profile seal to ensure an airtight, leak-free timing cover installation.
• Zero Core Charge: Sold outright as brand-new genuine Ford factory hardware with no core deposit or return required.

Technical Specifications

• Manufacturer / Brand: Ford Motor Company / Motorcraft
• Manufacturer Part Number / SKU: HC3Z-8501-A
• Motorcraft Short Part Number: PW-571 / PW571
• Superseded / Cross-Reference Numbers: HC3Z8501A, HC34-8501-AA
• Cooling Circuit Application: Primary High-Temperature Engine Cooling Loop
• Drive Mechanism: Serpentine Belt-Driven Mechanical Pump
• Housing Material: Die-Cast Aluminum Housing
• Impeller Design: Precision High-Flow Steel Impeller
• Hardware Included: Pre-Pressed Drive Pulley & Sealing Perimeter Gasket
• Truck Platform: 2017–2019 Ford Super Duty (F-250, F-350, F-450, F-550)
• Engine Platform: 6.7L Powerstroke V8 Turbo Diesel
• Core Requirement: None
• Warranty: Ford Motorcraft 2-Year / Unlimited-Mile Limited Warranty

Vehicle Fitment & Technical Installation Notes

• 2017–2019 Ford F-250 Super Duty – 6.7L Powerstroke V8 Turbo Diesel
• 2017–2019 Ford F-350 Super Duty – 6.7L Powerstroke V8 Turbo Diesel
• 2017–2019 Ford F-450 Super Duty – 6.7L Powerstroke V8 Turbo Diesel
• 2017–2019 Ford F-550 Super Duty – 6.7L Powerstroke V8 Turbo Diesel
• Fits Model Years: 2017, 2018, 2019
• Cooling Loop Verification: Fits the Primary (High-Temp) Cooling Circuit only. Note: Does not fit or replace the Secondary (Low-Temp) coolant pump located lower on the front timing assembly.
• Year Split Notice: Designed specifically for 2017–2019 6.7L Powerstroke engines. (For 2011–2016 model years, use primary pump SKU BC3Z-8501-F / Motorcraft PW-497; for 2020+ models, verify revision LC3Z-8501-A).
• Installation Tip: Clean the front timing cover mating surface thoroughly with a plastic scraper and solvent before installing the new pump and gasket. Torque water pump housing bolts in an alternating star pattern to factory Ford specifications (89 in-lbs / 10 Nm) to avoid uneven gasket compression. Vacuum-fill the primary cooling system with Ford Motorcraft Yellow Antifreeze/Coolant (WSS-M97B57-A2) to eliminate trapped air pockets around the EGR cooler and turbocharger bearing housing.
