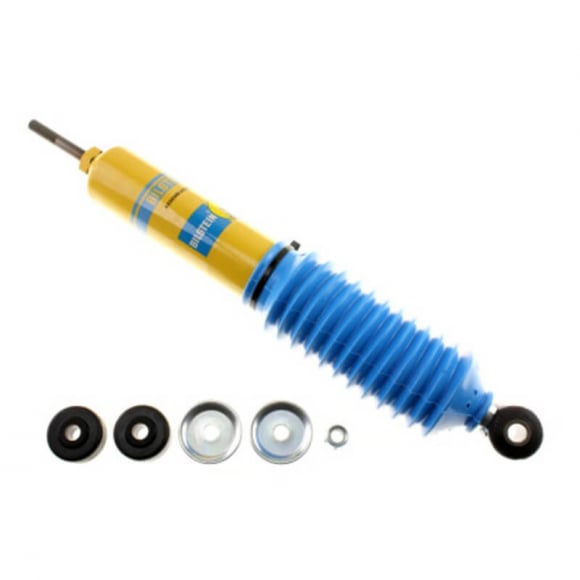

Bilstein B6 4600 Series Front Shock Absorber — 24-013284
Upgrade the ride, control, and durability of your classic Ford with the Bilstein B6 4600 Series front shock absorber (part #24-013284). This monotube gas-pressure shock is a direct-fit replacement for stock-height Ford trucks and Broncos, including 1994–1997 7.3L Powerstroke F-250 and F-350 2WD models.
Unlike basic twin-tube replacements, the B6 4600 uses a 46mm monotube design with high-pressure nitrogen and a velocity-sensitive digressive piston. It reacts instantly to changing road conditions, delivering consistent fade-free damping, better heat dissipation, and improved stability for daily driving, towing, and hauling.
Key Features
- 46mm monotube construction for larger piston area and superior cooling
- Application-specific valving tuned for stock-height Ford trucks
- Gas-charged design that reduces fade and foaming under load
- Direct bolt-on fit using factory mounting points
- Signature yellow finish with blue dust boot
- Limited lifetime warranty from Bilstein
Specifications
- Series: B6 4600
- Position: Front (driver or passenger)
- Internal design: Monotube
- Upper mount: Stem
- Lower mount: Eye, 12mm
- Boot: Blue bellows
- Finish: Yellow paint
- Collapsed length: 10.07 in
- Extended length: 14.67 in
- Quantity: Sold individually (2 required for the front axle)
Vehicle Fitment
Fits stock-height vehicles only.
7.3 Powerstroke
- 1994–1997 Ford F-250 7.3L Powerstroke — 2WD / RWD
- 1994–1997 Ford F-350 7.3L Powerstroke — 2WD / RWD
2WD / RWD applications
- 1980–1996 Ford F-150 — 2WD
- 1980–1996 Ford F-250 — 2WD
- 1980–1997 Ford F-350 — 2WD
- 1997 Ford F-250 HD — 2WD (commonly listed with 8-lug wheels)
4WD applications
- 1980–1996 Ford Bronco — 4WD
- 1980–1996 Ford F-150 — 4WD (primary shock on quad-shock setups; mounted rearward of the coil spring)
Fitment Notes
- Front shock only
- Designed for factory/stock ride height — not for lifted trucks
- Most F-250 and F-350 listings for this part number are 2WD/RWD
- 4WD Bronco and 4WD F-150 applications often use this as the rearward/primary shock on quad-shock front ends
- Verify 2WD vs 4WD and shock mounting style before ordering
- Replace front shocks in pairs for balanced handling and ride quality
This is a proven OEM-upgrade shock for stock-height Ford trucks. For lifted applications, use a Bilstein 5100 Series shock instead.
