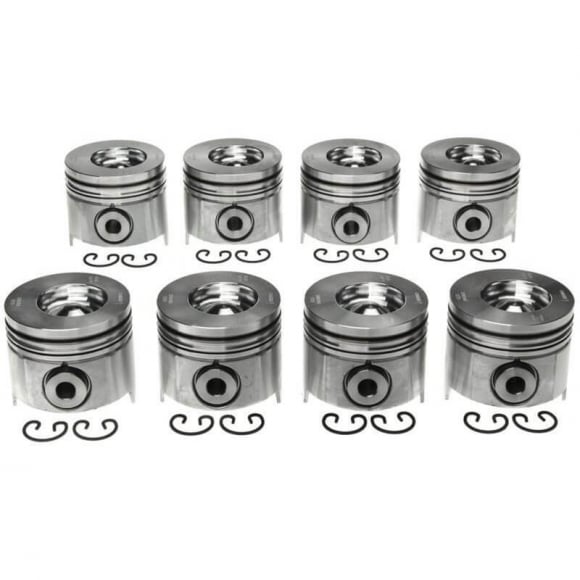

Thumbnail Filmstrip of 7.3 Powerstroke Piston Set (8) without Rings .030 Over Mahle 224-3163.030 Images
When undertaking a critical rebuild of your legendary 7.3L Powerstroke engine (1994-2003), the quality of your internal components is non-negotiable. The Mahle 224-3163.030 Pistons Set (8) offers a superior foundation, providing an Original Equipment (OE)-quality replacement that is engineered not just to fit, but to significantly enhance durability and efficiency. Mahle, a world leader in OE piston manufacturing, has crafted this piston with advanced features to address common engine weaknesses, ensuring a quieter, smoother running engine with superior oil control, reduced emissions, and improved response. Choosing this piston set for your engine rebuild means investing in proven engineering that reduces wear and stress on internal components for long-lasting reliability.
- GRAFAL® Anti-Friction Skirt Coating: Features Mahle’s proprietary graphite-impregnated resin coating to dramatically reduce friction, scuffing, drag, and cylinder bore wear.
- Expansion-Controlled Design: Allows for small fitting clearances, which effectively minimizes engine noise and internal wear.
- Compensated Ring Grooves: Ensures optimal ring loading and excellent oil control, leading to reduced oil consumption and lower emissions.
- Lightweight Design: Reduces reciprocating mass, resulting in smoother engine running and quicker engine response while decreasing stress on critical bearings.
- Forged Aluminum Construction: Provides high strength and exceptional thermal stability, making it ideal for the demands of the 7.3L diesel engine.
- OE-Quality Replacement: Meets or exceeds Original Equipment specifications for form, fit, and function, providing a reliable foundation for your rebuild.
Don't compromise the longevity and performance of your classic diesel engine with lesser components. The Mahle 224-3163.030 Pistons Set provides the ideal blend of OEM quality and modern engineering advancements, offering a durable, reliable solution for your 7.3 Powerstroke (1994-2003) rebuild. By integrating Mahle's advanced features—like the GRAFAL coating and expansion-controlled design—you ensure that your rebuilt engine not only performs like new but is better equipped to handle the stresses of the road, giving you confidence and power for years to come.
Specs:
- Piston Rings Included: No
- Bore (in.): 4.140 in.
- Bore (mm): 105.156mm
- Stroke: 4.180 in.
- Engine Stroke Type: Stock
- Rod Length: 7.130 in.
- Piston Style: Dish, with no valve reliefs
- Piston Material: Cast aluminum
- Compression Height (in.): 2.142 in.
- Piston Head Volume (cc): +39.59cc
- Wrist Pin Style: Press-fit or floating
- Wrist Pin Retainers Included: Yes
- Wrist Pin Included: Yes
- Pin Diameter (in.): 1.308 in.
- Piston Ring Thickness: 2.00mm x 3.00mm x 3.50mm
- File Fit: No
- Gapless: No
- Remanufactured: No
- Quantity: Sold as a set of 8. Priced Individually.
