High-Flow Volumetric Efficiency and Pro 5R Oiled Media

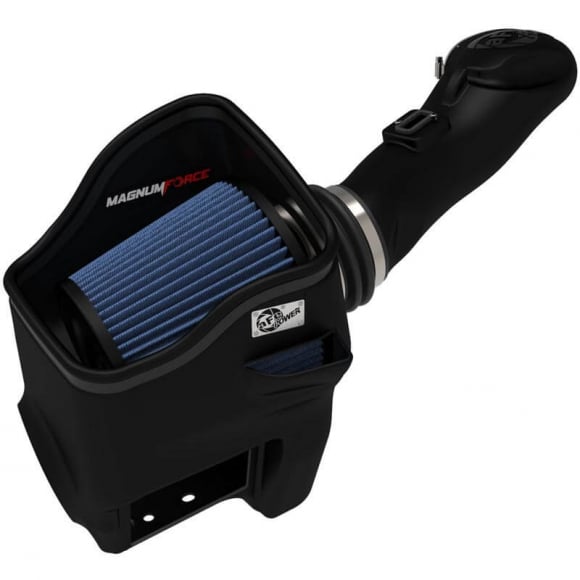

Engineered specifically for the 2011–2016 Ford Super Duty equipped with the 6.7L Powerstroke V8 turbo diesel, the Magnum FORCE Stage-2 system replaces the restrictive factory airbox and baffling to feed dense ambient air directly to the turbocharger inlet. The system centers on a massive 360-degree radial flow Pro 5R filter with an inverted top and five progressive layers of oiled cotton gauze media, delivering outstanding dust-holding capacity and unrestricted airflow for heavy towing and street performance.

Key Features & Benefits

• Dyno-Proven Flow Gains: Outflows factory intake restrictions significantly to improve throttle response, accelerate turbo spool times, and lower exhaust gas temperatures.
• Pro 5R Oiled Filtration: Five layers of progressively finer cotton gauze media trap airborne contaminants while maximizing volumetric airflow throughput.
• Durable Open-Element Housing: Heat-resistant cross-linked polyethylene polymer construction minimizes warm under-hood air and provides an aggressive turbo whistle.
• Inverted Top Conical Filter: Increases total usable filter media surface area for longer service intervals between routine cleanings.
• Direct Bolt-On Installation: Installs into factory mounting locations with premium silicone couplings, heavy-duty clamps, and no cutting or drilling required.

Technical Specifications

• Manufacturer Part Number / SKU: 54-11872-1 (Magnum FORCE Stage 2 Series)
• Engine Platform: 2011–2016 Ford 6.7L Powerstroke V8 Turbo Diesel (Pickup)
• Filter Media Type: Pro 5R (5-Layer Progressive Oiled Cotton Gauze, Washable & Reusable)
• Filter Dimensions: 8" Tall Conical Filter with Inverted Top and 5-1/2" Flange
• Housing Material: Heat-Resistant Cross-Linked Polyethylene (XLPE) Polymer
• Street Legal Status: 50-State Emissions Legal (CARB EO Exempt where applicable)
• Warranty: aFe Power Limited 2-Year Warranty

Vehicle Fitment & Installation Notes

• 2011–2016 Ford F-250 Super Duty Pickup – 6.7L Powerstroke V8 Turbo Diesel
• 2011–2016 Ford F-350 Super Duty Pickup – 6.7L Powerstroke V8 Turbo Diesel
• 2011–2016 Ford F-450 Super Duty Pickup – 6.7L Powerstroke V8 Turbo Diesel
• Fits Model Years: 2011, 2012, 2013, 2014, 2015, 2016 (Pickup Configurations Only)
• Installation Tip: Ensure all silicone coupler connections and clamps are properly aligned and torqued down to maintain a tight seal and prevent unmetered air leaks past factory sensors.
