Ford 1994–2004 LoadLifter 5000 Helper Spring Kit | Air Lift 57298

Built for Super Duty trucks that already have a Reese fifth-wheel hitch. The Air Lift LoadLifter 5000 kit (part #57298) adds up to 5,000 lbs of adjustable rear load support so a 1994–2004 F-250 or F-350 stays level and stable when towing or hauling. These helper air springs work with the factory leaf springs to fight squat, trailer sway, and bottoming out. Air pressure is fully adjustable from 5–100 PSI, so you can firm the ride when the hitch is loaded and drop pressure for a smoother empty ride.

Key features

• Rear LoadLifter 5000 helper springs for Reese fifth-wheel applications
• Up to 5,000 lbs of load-leveling capacity (never exceed the truck’s GVWR)
• Adjustable from 5–100 PSI for empty, partial, or max-load conditions
• 2-ply fabric-reinforced rubber bellows built like a tire
• Exclusive upper and lower roll plates protect the bags and help increase capacity
• Corrosion-proof nylon composite end caps that are steel-strong, lighter, and rust-free
• Quick-connect air fittings with included air line and Schrader valve
• Improves ride height, braking, and steering control under load
• Limited lifetime warranty

Fitment

• 1994–1997 Ford F-250 / F-350 2WD and 4WD
• 1997 Ford F-250 HD
• 1999–2004 Ford F-250 Super Duty 2WD and 4WD
• 1999–2004 Ford F-350 Super Duty 2WD and 4WD
• Compatible with 7.3 Powerstroke diesel and gas engines
• Rear axle / factory leaf springs
• Designed for trucks equipped with a Reese fifth-wheel hitch

This kit is for Reese fifth-wheel hitch applications only. Does not fit cab & chassis trucks. If the truck has an in-bed hitch or no fifth-wheel hitch, use a different Air Lift kit such as 57390.

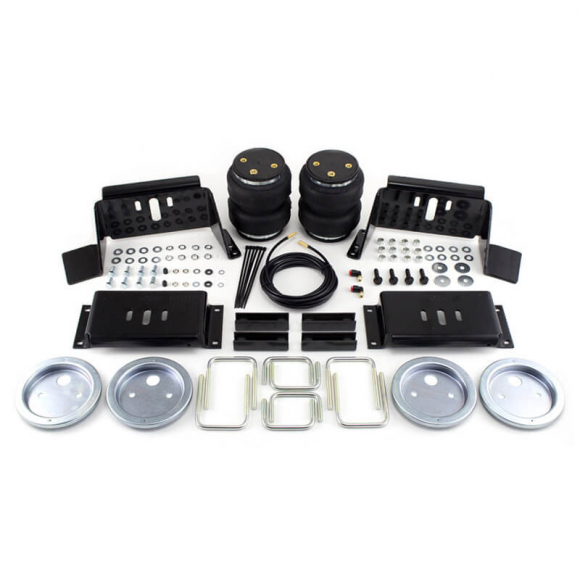

What’s in the box

• Pair of LoadLifter 5000 air springs
• Upper and lower roll plates
• Vehicle-specific mounting brackets and hardware
• Air line, fittings, and Schrader fill valve
• Illustrated installation manual

Notes & specs

• Compressor, in-cab gauges, and wireless controllers are not included
• Pair this kit with an Air Lift WirelessONE, LoadController, or similar onboard air system if you want to adjust pressure from the cab
• Brand/part number: Air Lift LoadLifter 5000 57298
• UPC: 729199572982
• Position: rear
• Capacity: up to 5,000 lbs
• Pressure range: 5–100 PSI
• Hitch requirement: Reese fifth-wheel hitch
• Drilling: typically required
• Install time: about 1–2 hours
• Replacement spring: Air Lift 50201
• Kit weight: about 37 lbs
• Warranty: limited lifetime

Route the included air line to a convenient fill point at the bumper, bed, or license-plate area. Always set pressure for the load you are carrying and do not exceed the vehicle manufacturer’s GVWR. If your 1994–2004 F-250 or F-350 has a Reese fifth-wheel hitch and squats under a trailer, the Air Lift 57298 LoadLifter 5000 kit adds 5,000 lbs of adjustable rear support made for that hitch setup.
