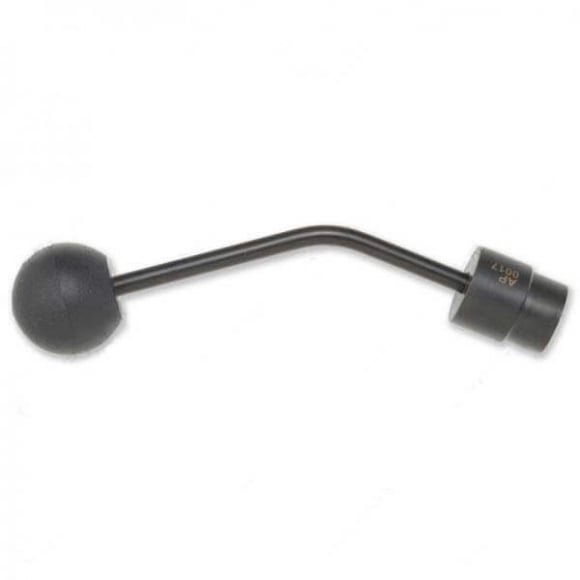

The Alliant Power AP0017 Fuel Injector Connector Removal Tool is a specialized mechanical service tool engineered specifically for 2003–2010 Ford Super Duty trucks, Excursions, and E-Series vans equipped with the 6.0L Powerstroke diesel engine (as well as 4.5L Powerstroke, 6.4L Powerstroke, and Navistar VT365/VT275/MaxxForce 5 applications). Designed to fit directly into the rocker arm carrier pass-through ports, this tool compresses the internal locking tabs of the FICM wiring harness injector sleeves cleanly and evenly, allowing effortless connector extraction without breaking delicate plastic clips, pulling out wires, or damaging expensive harness assemblies.

Quick Specs & Kit Inclusions

• Application: Specialized release and extraction tool for engine-mounted fuel injector electrical harness connectors
• Tool Profile: Precision-radiused dual-prong cylindrical collar designed to match OEM connector locking geometry
• Material Construction: Heavy-duty, heat-treated stamped alloy steel with a zinc/black-oxide anti-corrosion finish
• Clearance Compatibility: Low-profile reach engineered to access recessed rear cylinders (#7 and #8) under the cowl and evaporator housing
• Direct Interchange Part Numbers: Alliant Power AP0017, Ford Specialty Tool 303-1115, OTC 6608
• What's in the Box: (1) Genuine Alliant Power AP0017 Fuel Injector Connector Removal Tool

Problem Solved: Eliminating Shattered Harness Clips, Pinched Wires & Costly Harness Replacements

Servicing fuel injectors, high-pressure oil rails, or rocker carriers on the 6.0L Powerstroke requires disconnecting all eight fuel injector plugs through recessed pass-through holes in the rocker box. Due to years of extreme engine bay heat and continuous thermal cycling, the molded plastic connector bodies and internal locking ears turn brittle. Attempting to release these plugs using flat-blade screwdrivers, pry bars, or needle-nose pliers almost always cracks the connector housings, breaks off the internal lock tabs, or damages the individual wire seals. A damaged injector connector results in loose pin fitment, high-resistance open circuits, random cylinder misfires (DTCs P0261 through P0284), and often necessitates replacing the entire engine FICM wiring harness. The Alliant Power AP0017 slides smoothly into the rocker hole to depress both locking tabs simultaneously with balanced mechanical pressure, allowing the connector to slide free without damage.
