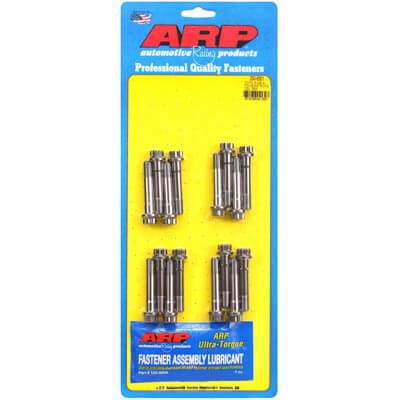

ARP 250-6301 Pro Series Rod Bolt Kit for Ford 6.0L and 6.4L Powerstroke

ARP built this kit for the factory connecting rods on the 6.0L and 6.4L. ARP recommends the stretch method for installation.

Key Benefits & Features

Material: ARP2000 alloy, rated about 220,000 psi tensile.
Quantity: 16 bolts; 7/16 in 12-point.
Install: Stretch to 0.0075–0.0080 in, or torque to 55 ft-lb with ARP Ultra-Torque if no stretch gauge.
Machine Work: ARP says to resize the rods after installing new bolts.
