The Atlas 228-4068 High-Pressure Oil Rail Nipple Cup (Ball Tube) Set is a complete heavy-duty service kit engineered specifically to rebuild the high-pressure oil rails on 2003–2007 Ford 6.0L Powerstroke diesel engines. Precision-machined from hardened steel alloy with polished spherical sealing heads, this eight-piece set replaces worn, leaking, or scored factory ball tubes and includes upgraded fluorocarbon (Viton) internal O-rings to permanently restore high-pressure oil integrity to the fuel injectors.

Quick Specs & Kit Inclusions

• Application: High-pressure oil rail discharge nipple cups (ball tubes)
• Material Construction: Case-hardened steel alloy with precision-ground, polished spherical sealing tips
• Seal Material: Heavy-duty, high-temperature fluorocarbon (Viton) internal O-rings with reinforced backup rings
• Configuration Coverage: Complete V8 engine kit (services both bank high-pressure oil rails)
• Emissions Status: 50-state legal (direct mechanical replacement)

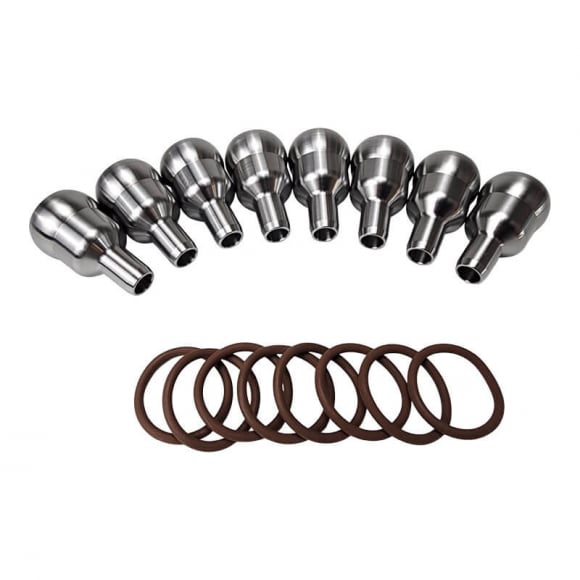

• What's in the Box: (8) Hardened Steel Oil Rail Nipple Cups, (8) Heavy-Duty Viton Internal O-Rings, (8) Steel Backup Rings, and (8) Threaded Retaining Collars

Problem Solved: Curing Hot No-Starts & Low ICP Pressure

A leading cause of long cranking, erratic idle, hot no-start conditions, and low Injector Control Pressure (ICP) trouble codes (P2291, P2284) on the 6.0L Powerstroke is failed oil rail ball tubes. Continuous high-pressure cycling up to 4,000 PSI causes the internal O-rings beneath the factory cups to harden, flatten, and blow out. Simultaneously, metal-on-metal friction galls the spherical ball tips where they interface with the fuel injector top d-rings, causing severe internal high-pressure oil leaks once engine oil thins at operating temperature. The Atlas 228-4068 set eliminates the need to purchase expensive complete OEM rails by providing heavy-duty replacement ball cups and heat-resistant seals to restore complete hydraulic pressure retention.

Fitment

• 2003–2007 Ford F-250 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-350 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-450 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2007 Ford F-550 Super Duty 6.0L Powerstroke Turbo Diesel
• 2003–2005 Ford Excursion 6.0L Powerstroke Turbo Diesel
• 2004–2010 Ford E-Series Vans (E-350 / E-450) 6.0L Powerstroke Turbo Diesel
• Note: Compatible with both early (2003–early 2004 wavy rail) and late (late 2004–2007 cast rail) high-pressure oil rail designs.

Bench Setup: Remove both high-pressure oil rails from the cylinder heads according to factory workshop procedures. Secure each rail firmly in a soft-jaw bench vise to prevent surface damage or rail body distortion. Collar Removal: Use an oil rail ball tube socket tool (Atlas 228-4069 or equivalent) with a 1/2-inch drive ratchet to engage the factory retaining collar notches. Apply steady, linear counter-clockwise torque to unthread all eight retaining collars. (Do not use pneumatic or electric impact wrenches, as violent hammering can crack the retaining notches). Bore Preparation: Remove the old ball tubes, internal O-rings, and backup rings from the rail cavities. Clean the threaded ports and internal seal glands thoroughly with brake cleaner and lint-free shop towels; inspect female bores to confirm there is no scoring or metal debris. Seal Installation: Coat the new Viton O-rings and backup rings generously with clean engine oil or assembly lubricant. Seat each backup ring and O-ring squarely into the internal bore gland, verifying the seal is fully seated and not twisted. Ball Tube Placement: Lubricate the spherical heads, shafts, and lower base of the new Atlas ball tubes with clean engine oil. Insert each ball tube squarely into its respective cavity, followed by the threaded retaining collar. Torque Target: Re-engage the installation socket over the retaining collar. Using a calibrated 1/2-inch drive torque wrench, tighten each retaining collar to 100 ft-lbs (135 Nm). Swivel & Deflection Check: Once torqued, verify that each ball tube retains slight multi-directional swivel flexibility while maintaining zero axial (in-and-out) play. If a tube is locked rigid or exhibits lateral end-play, remove the collar and verify O-ring gland seating. Final Assembly: Coat the exterior spherical ball tips with clean engine oil before reinstalling the high-pressure oil rails onto the cylinder heads to prevent tearing new fuel injector top d-ring seals during rail pull-down.
