The BD Diesel 1040022 Killer Frost Plug Plate seals the rear frost plug on 1989-2002 Dodge trucks with the mechanically injected 5.9L Cummins, 12 valve or 24 valve.

Coolant pressure can pass 70 psi before the thermostat opens, which pushes out or leaks a corroded rear plug. The plate seals with a #333 O-ring on the machined rear face, so the old plug can stay in.

• No Plug Removal: Works with the plug in, blown or leaking.
• O-Ring Seal: Single #333 O-ring.
• TCC Tube Friendly: With or without crossover tube.
• 50 State Legal: No EO needed per BD.
• Simple Hardware: Two M12 bolts.

Technical Specifications

• Part Number: 1040022
• Manufacturer: BD Diesel

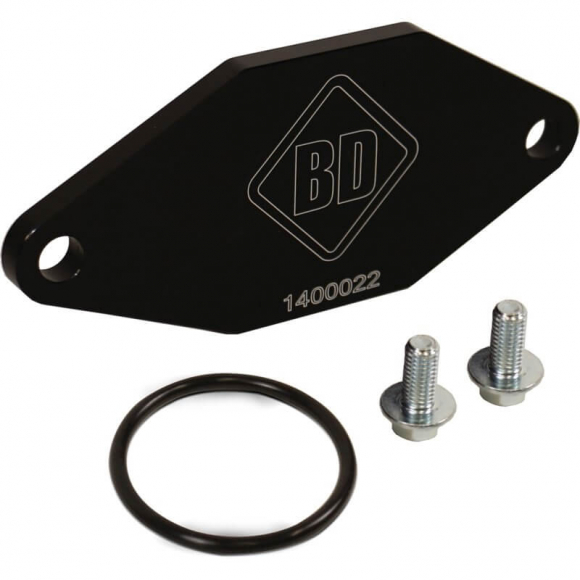

• Includes: Plate, 2 M12 x 25 bolts, #333 O-ring
• Warranty: 12 Months

Vehicle Fitment & Technical Installation Notes

• Fitment: 1989-1993 Dodge D/W250 and D/W350 and 1994-2002 Dodge Ram 2500 and 3500 5.9L Cummins.
• Installation Tip: Best installed with the transmission out. Clean the rear block face until smooth and flat, and lubricate the O-ring with silicone grease.
