The BD Diesel 1045210 hose and clamp kit replaces the intercooler boots on 1994-2002 Dodge Ram 2500 and 3500 trucks with the 5.9L Cummins, 12 valve or 24 valve.

BD builds each hose to three times its working pressure using Nomex/aramid plies and fluorosilicone that holds up to oily residue. Spring loaded 300 series stainless clamps keep clamping force steady through heat cycles.

• Nomex Reinforced: 4-5 plies of DuPont Nomex/aramid.
• High Boost Rated: Hoses built to 3x working pressure.
• Oil Resistant: Fluorosilicone and fluorocarbon.
• Spring Loaded Clamps: 300 series stainless.
• Complete Set: Boots and clamps for both sides.

Technical Specifications

• Part Number: 1045210
• Manufacturer: BD Diesel

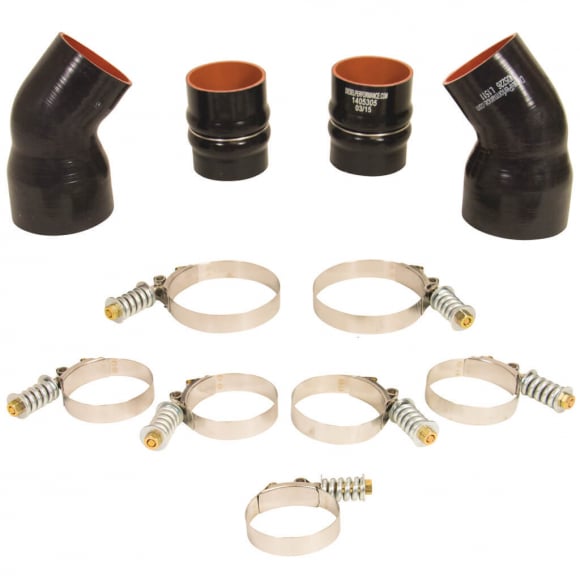

• Includes: 2 angled boots, 2 intercooler pipe boots, 6 clamps 3.00-3.38 in, 2 clamps 3.89-4.24 in
• Material: Nomex/aramid with fluorosilicone

Vehicle Fitment & Technical Installation Notes

• Fitment: 1994-2002 Dodge Ram 2500 and 3500 5.9L Cummins, 12V and 24V.
• Installation Tip: Fit the larger 3.89-4.24 inch clamps where the boots meet the intercooler, and retorque all clamps after the first heat cycle.
