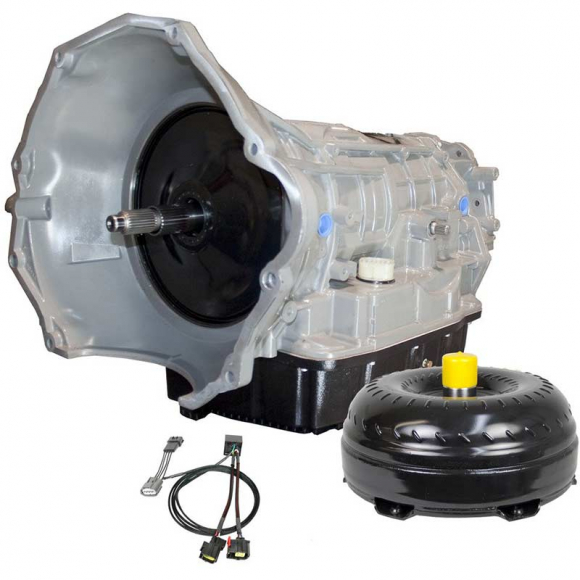

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
TRANSMISSION:
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- TCC limit valve machined and sleeved to address high wear area with in pump
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
PROFORCE 3D TORQUE CONVERTER:
- Triple Disc
- Enhanced Stall - Street/Towing applications
- HD springs absorb shock of engagement
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Thrust bearings - not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximizes torque
- New sprag components ensure long term durability
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
PROFORCE TORQUE CONVERTER:
- Enhanced Stall - Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
Shipping Note: Item is truck freight at a flat rate of $300 each. Return shipping of your core (unless you set up and pay the shipping without our assistance) will deducted from your required core charge. The balance will be refunded to you.
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
TRANSMISSION:
Hard anodized valve body and new solenoid pack installed in every unit
Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
Heavy duty cam & roller design low reverse one way clutch
New 4C billet spring retainer
Steel girdle added to 2C piston to allow for more clutches and broader apply area
BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
Over Drive clutches 33% increase & 2C clutches 33% increase
Custom Big Stack overdrive shaft
BD reinforced accumulator plate
TCC limit valve machined and sleeved to address high wear area with in pump
BD Deep sump oil pan adds extra fluid a[...]
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
TRANSMISSION:
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- TCC limit valve machined and sleeved to address high wear area with in pump
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
PROFORCE 3D TORQUE CONVERTER:
- Triple Disc
- Enhanced Stall - Street/Towing applications
- HD springs absorb shock of engagement
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Thrust bearings - not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximizes torque
- New sprag components ensure long term durability
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
PROFORCE TORQUE CONVERTER:
- Enhanced Stall - Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
Shipping Note: Item is truck freight at a flat rate of $300 each. Return shipping of your core (unless you set up and pay the shipping without our assistance) will deducted from your required core charge. The balance will be refunded to you.
Fits: 6.7 Cummins 4WD 2012-2018
Fits: 6.7 Cummins 4WD 2012-2018
Fits: 6.7 Cummins 2007.5-2018
Fits: 6.7 Cummins 2007.5-2018
