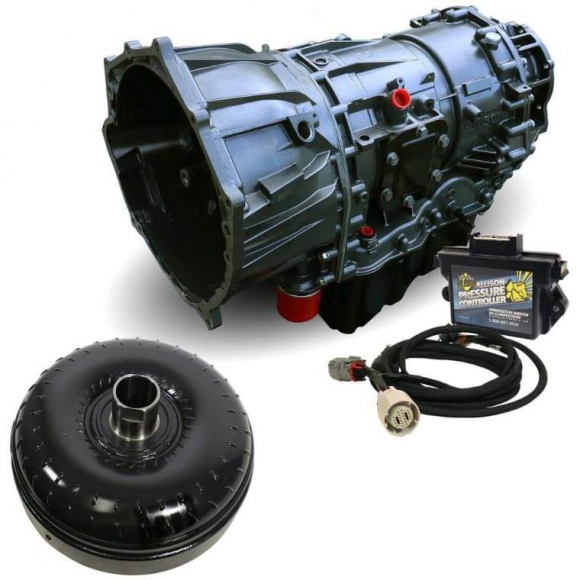

BD Transmission and Torque Converter Package

Unmatched Performance and Reliability in a Matched Set

When you invest in a BD Transmission and Torque Converter Package, you're choosing a system that has been meticulously engineered and dyno-tested together to deliver ultimate performance and reliability. Whether you're towing, driving on the street, or hitting the track, this package ensures that your drivetrain can handle the power and torque demands of your diesel engine.

Transmission: Built for Durability and Performance The BD transmission is designed to significantly enhance the durability of your drivetrain. Featuring BD's Aluminum Heavy Duty deep transmission pan, it increases oil capacity by 3.5 quarts, ensuring better cooling and extended fluid life. The inclusion of the BD Allison Pressure Box delivers up to 275 PSI of line pressure, providing superior clutch engagement and durability.

The transmission also boasts high-energy GPZ™ frictions and an increased steel mass for improved heat dissipation. With an increased clutch count across all clutch packs, this transmission is built to handle more torque and deliver smoother, more reliable shifts. Each transmission is rigorously dyno-tested to ensure it meets the highest standards of performance.

Transmission Features:

• Increased Durability: Enhanced components to withstand higher torque and power.
• BD Aluminum HD Deep Transmission Pan: Adds 3.5 quarts of oil capacity for improved cooling.
• BD Allison Pressure Box: Provides up to 275 PSI of line pressure.
• High-Energy GPZ™ Frictions: Improved friction material for longer life.
• Increased Clutch Count: Enhanced clutch capacity for better performance.
• Clutch Count Increases: C1 - 14%, C2 - 17%, C3 - 75%, C4 - 17%, C5 - 17%.
• Dyno Tested: Each unit is tested for reliability and performance.
• Optional Billet Input Shaft: Available for even greater strength.

ProForce 3D Torque Converter: The ProForce 3D Torque Converter is designed to complement the enhanced performance of the transmission. With a triple-disc design, it provides an "Enhanced Stall" option for street and towing applications. Heavy-duty springs absorb the shock of engagement, while the stamp-forged one-piece cover eliminates warpage from clutch heat. The converter also features a self-centering trapezoid teeth design, which increases contact, reduces wear, and ensures longer life.

ProForce 3D Torque Converter Features:

• Triple-Disc Design: For superior torque handling.
• Enhanced Stall: Ideal for street and towing applications.
• Heavy-Duty Springs: Absorb shock for smoother engagement.
• Stamp-Forged One-Piece Cover: Eliminates warpage and extends life.
• Trapezoid Teeth Design: Self-centering for reduced wear.
• Thrust Bearings: Replace plastic washers for enhanced durability.
• Cast Stator Design: Maximizes torque for better performance.
• Furnace-Brazed Turbine Fins: Improve fluid coupling efficiency.
• Lighter Weight: Reduced overall weight by 12 lbs compared to competitors.

ProForce Torque Converter: For those seeking an alternative, the ProForce Torque Converter features a torque-multiplying cast aluminum stator that enhances efficiency and reduces heat. It also offers a lower RPM response than stock converters, making it ideal for street and towing applications.

ProForce Torque Converter Features:

• Enhanced Stall: Perfect for street and towing.
• Cast Aluminum Stators: Improve efficiency and response.
• Lower RPM Response: Faster engagement and better drivability.
• Stamp-Forged Steel Front Cover: Strong and durable construction.
• Efficient Operation: Less heat, better fuel economy.

Shipping Information: This package ships via truck freight at a flat rate of $300 per unit. Return shipping for your core (unless arranged independently) will be deducted from your required core charge, with the remaining balance refunded to you.

Choose the BD Transmission and Torque Converter Package for a complete, tested, and reliable solution that enhances the performance and durability of your diesel drivetrain.
