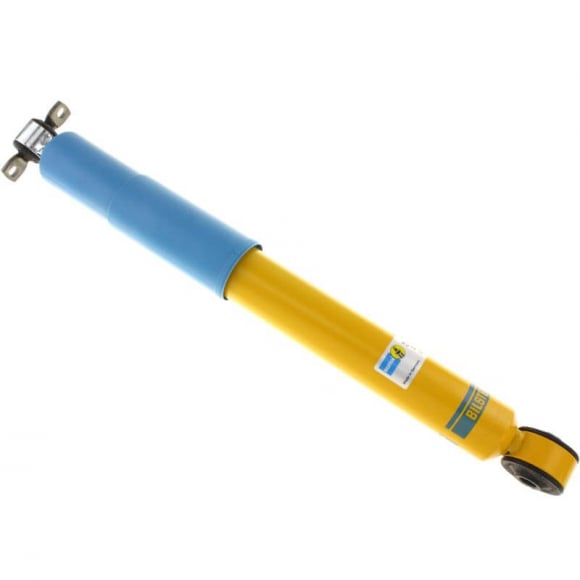

Express/Savana 96-13 B6 Series Shock Absorber — Bilstein 24-024815
Upgrade the rear suspension on your Chevrolet Express or GMC Savana with the Bilstein B6 24-024815. This 46mm monotube gas-pressure shock is a stock-height, direct-fit rear replacement that firms up control without changing ride height or springs. It is built for work vans that haul, tow, and see daily miles—more stability, less wallow, and fade-free damping when the factory shocks are worn out.
Why this shock
Bilstein B6 shocks are application-tuned performance replacements for stock-height vehicles. The monotube body and velocity-sensitive digressive piston react to the road in real time, so the van stays planted on the highway, in crosswinds, and under cargo. Gas-pressure design helps prevent oil foaming, so damping stays consistent when the shock heats up from load or long trips. The result is tighter handling and a more controlled ride than tired OE twin-tube shocks, without a lift or lowering kit.
Signature yellow paint and a blue straight dust boot protect the body and shaft. Limited lifetime warranty from Bilstein.
Key features
- 46mm monotube gas-pressure design for consistent, fade-free damping
- Velocity-sensitive digressive piston tuned for Express/Savana
- Stock-height and OE-spring compatible — no lift or lowering
- Better control when loaded, towing, or changing lanes
- Direct-fit rear hardware: upper bar pin, lower 14.1 mm eye
- Corrosion-resistant yellow finish and blue straight boot
- Made in Germany
- Limited lifetime warranty
- Sold as a single shock (quantity 2 per vehicle)
Specifications
- Brand / Series: Bilstein B6 (4600)
- Part number: 24-024815
- Position: Rear (driver or passenger)
- Internal design: Monotube, gas pressure
- Piston: 46 mm
- Finish: Yellow paint
- Boot: Blue straight (included)
- Upper mount: Bar pin
- Lower mount: Eye, 14.1 mm
- Collapsed length: 13.29 in (337.5 mm)
- Extended length: 20.89 in (530.5 mm)
- Approximate travel: 7.6 in
- Spring seat: No
- Weight: 4.45 lb
- Quantity per vehicle: 2 (sold individually)
- Country of origin: Germany
- UPC: 651860411972
- Warranty: Limited lifetime
Fitment
Rear shock for GM GMT600 van chassis. Confirm GVWR and year notes before ordering.
Chevrolet
- Express 1500 — 1996–2014
- Express 2500 — 1996–2013 (typically to GVWR 7,300 lb)
- G30 — 1996
GMC
- Savana 1500 — 1996–2014
- Savana 2500 — 1996–2001 and 2003–2013 (typically to GVWR 7,300 lb)
- G3500 — 1996
Notes
- Rear position only; stock height
- Class C / GMT600 applications with Express/Savana 3500 chassis notes
- 2500 applications are commonly limited to 7,300 lb GVWR
- Uses factory springs and mounting points
- Always verify year, model, drivetrain, and GVWR against your VIN before purchase
