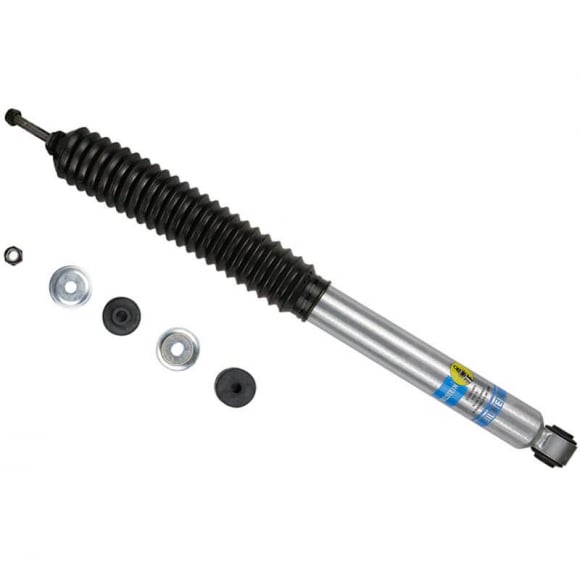

ilstein B8 5100 Front Shock Absorber 24-066464
5.9L & 6.7L Cummins Ram 2500/3500 4WD (4–5" Lift)
Upgrade your lifted Cummins Ram with the Bilstein B8 5100 Series front shock absorber (part #24-066464). This 46mm monotube, high-pressure gas shock is built for 4WD Dodge/Ram 2500 and 3500 trucks with 5.9L or 6.7L Cummins engines and approximately 4–5" of front lift. Sold individually (two required per vehicle).
A velocity-sensitive digressive piston and self-adjusting deflective disc valving change damping as road conditions change. The monotube design dissipates heat better than typical twin-tube shocks, helping prevent fade during towing, loaded highway driving, or occasional off-road use while keeping a controlled street ride. Application-specific valving, a zinc-plated body, and a black bellows boot add durability and corrosion resistance.
Features
- 46mm monotube gas-pressure design for consistent, fade-resistant damping
- Digressive, velocity-sensitive piston that reacts to changing surfaces
- Vehicle-specific tuning for lifted Cummins Rams
- Zinc-plated finish with included black dust bellows
- Direct-fit stem-to-eye mounts (upper stem / lower 14.1mm eye)
- Non-adjustable, no remote reservoir, smooth-body (non-coilover)
- Limited lifetime warranty
Specifications
- Collapsed length: 16.34" (415 mm)
- Extended length: 27.32" (694 mm)
- Stroke: ~10.98"
- Body diameter: 46 mm ID
- Finish: Zinc plated
- Supercedes / old numbers: 24-185769, F4-BE5-6646-H7
Fitment
- 1994–2013 Ram/Dodge 2500 4WD, 5.9L or 6.7L Cummins, ~4–5" front lift
- 1994–2012 Ram/Dodge 3500 4WD, 5.9L or 6.7L Cummins, ~4–5" front lift
Also listed for certain 1994–2001 and 2006–2008 Ram 1500 4WD applications with similar lift. Confirm year, cab, drivetrain, and actual shock length before ordering. Aftermarket lift kits vary, so measure pin-to-eye (from the base of the stem where the hardware sits to the center of the lower eye). This shock does not add lift by itself. Some Mega Cab or bump-stop setups may need extra clearance checks.
A solid upgrade over stock or budget lifted shocks when you want better control and ride quality without a remote-reservoir kit. Pair with matching rear B8 5100s and quality lift components for balanced performance.
