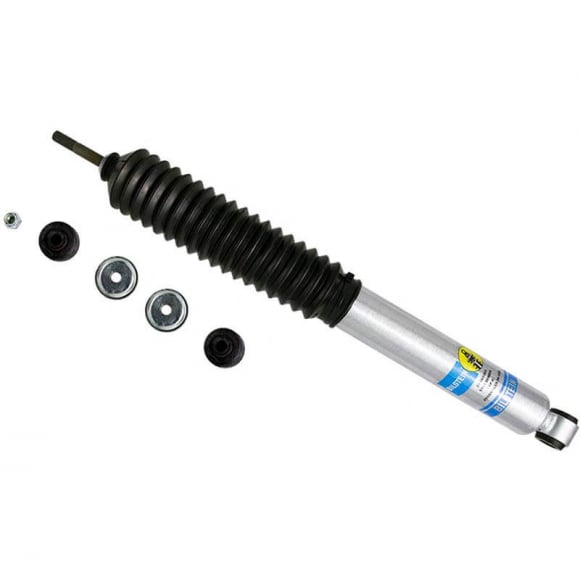

Powerstroke 05-16 Bilstein 5100 Series Shock Absorber – 24-186018 (Front)

Upgrade the front suspension on your 2005-2016 Ford F-250 or F-350 Super Duty 4WD with the Bilstein B8 5100 Series shock absorber (part #24-186018). Specifically designed for trucks with 0–2" of lift, this monotube shock delivers the control, durability, and ride quality Powerstroke owners demand for daily driving, towing, and light off-road use.

Key Features & Benefits

• 46mm monotube design – Provides consistent, fade-free damping under heavy loads and varying road conditions
• Velocity-sensitive digressive piston – Instantly reacts to changing surfaces for improved handling and comfort
• Vehicle-specific valving – Tuned by Bilstein for the 2005-2016 Super Duty chassis
• Zinc-plated finish – Superior corrosion resistance for long service life
• Direct-fit mounting – Stem upper / eye lower (14.4mm) with black bellows boot included
• Ideal for heavy hauling, towing, and occasional off-road use while maintaining a comfortable street ride

Specifications

• Position: Front
• Lift Range: 0–2"
• Collapsed Length: 13.59"
• Extended Length: 21.42"
• Body Design: 46mm Smooth Body
• Internal Design: Monotube
• Finish: Zinc Plated
• Reservoir: No
• Quantity Needed: 2 (sold individually)

Fitment: 2005–2016 Ford F-250 / F-350 Super Duty 4WD (Front) with 0–2" lift. Always verify ride height and measure for proper application, as aftermarket suspension systems can vary.

Backed by Bilstein’s limited lifetime warranty. A proven upgrade that restores control and confidence to your lifted Super Duty without the harsh ride of cheaper shocks.
