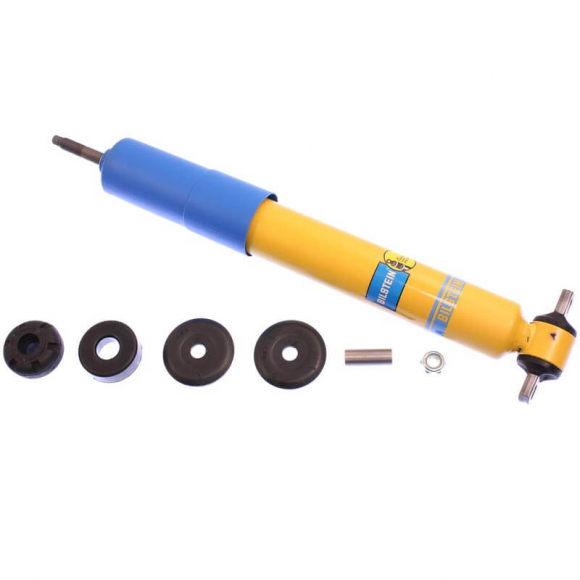

Bilstein B6 4600 Series Front Shock Absorber 24-186063
Upgrade the ride and control of your stock-height Ram with a direct-fit Bilstein B6 4600 front shock. Part number 24-186063 is a 46mm monotube gas-pressure damper built as a bolt-on replacement for worn factory shocks. It keeps original ride height, uses factory mounting points, and is application-tuned for 2WD and RWD Dodge Ram and Ram 2500/3500 trucks.
The monotube body and velocity-sensitive digressive piston deliver consistent, fade-free damping. Small bumps stay comfortable. Larger hits, body roll, and heavy loads get firmer control. High-pressure nitrogen helps prevent oil foaming on long hauls, so performance holds up when towing or carrying cargo.
Sold individually. Replace both front shocks at the same time.
Key features
- Direct-fit upgrade for stock-height light trucks
- 46mm monotube design for consistent, fade-free performance
- Velocity-sensitive digressive piston that reacts to changing road conditions
- Application-specific valving for Dodge Ram and Ram 1500, 2500, and 3500
- High-pressure nitrogen charge to reduce fade under load
- Stem upper mount and bar-pin lower mount
- Yellow corrosion-resistant finish with black straight dust boot
- No reservoir and no adjustable damping
- Limited lifetime warranty
Fitment
- 2006–2008 Dodge Ram 1500 2WD front, typically Mega Cab with front coil springs
- 2003–2010 Dodge Ram 2500 2WD/RWD front, without solid front axle
- 2003–2010 Dodge Ram 3500 2WD/RWD front, without solid front axle
- 2011–2012 Ram 2500 2WD/RWD front, without solid front axle
- 2011–2012 Ram 3500 2WD/RWD front, without solid front axle
- Front position only
- Stock height only
- Two front shocks required per vehicle
- Does not fit 4WD models
- Does not fit lifted trucks
- Does not fit trucks with a solid front axle
Confirm year, drive type, and axle style before ordering.
Specifications Part number: 24-186063 Series: B6 4600 Position: Front, driver or passenger side Internal design: Monotube, gas charged Body diameter: 46 mm / 2.0 in Collapsed length: 11.25 in Extended length: 16.14 in Upper mount: Stem Lower mount: Bar pin Finish: Yellow paint Boot included: Black straight Reservoir: No Adjustable damping: No Spring seat included: No Weight: 4.41 lb UPC: 651860558974 Country of origin: Mexico Warranty: Limited lifetime
Replacement mounting kit, if needed: B4-KT1-Z223A00. Common interchange numbers include Dodge 5086561AB, 5086566AB, and Bilstein BE5-C603 / F4-BE5-C603-H0.
