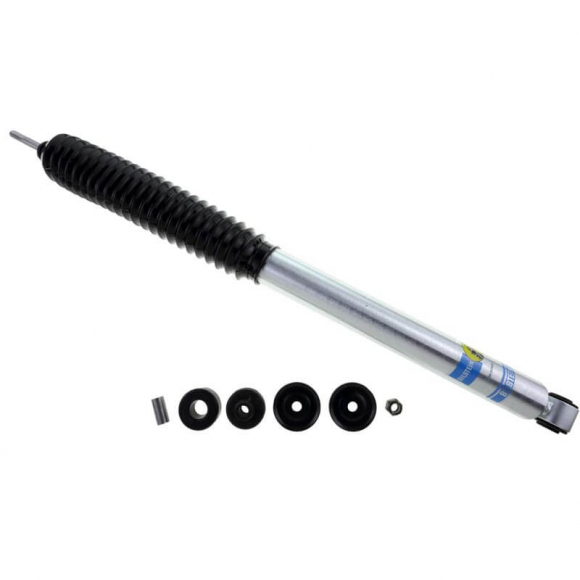

Bilstein B8 5100 Series Front Shock Absorber — 24-187213
For 5.9L & 6.7L Cummins | 6–8" Lift | 4WD
Give your lifted Cummins the damping it actually needs. The Bilstein B8 5100 (24-187213) is a high-pressure monotube front shock built for 1994–2013 Ram 2500 and 1994–2012 Ram 3500 4WD trucks with a 6–8" front lift. It is sold individually — two required per vehicle.
Designed for heavy Cummins trucks that tow, haul, and see mixed pavement and dirt, this shock uses a 46mm digressive piston and self-adjusting deflective-disc valving. It reacts quickly to changing road inputs so the front end stays planted when loaded, without the harshness of cheap lifted shocks on the street.
Why it works on a lifted 5.9 / 6.7
- Monotube, high-gas-pressure design — cooler operation and consistent, fade-free damping versus twin-tube shocks.
- 46mm digressive piston — large piston area plus velocity-sensitive valving for control over washboard, potholes, and loaded highway runs.
- Application-specific tune — valved for these 4WD Rams, not a generic “lifted truck” shock.
- Zinc-plated body + Triple-C coating — corrosion resistance for salt, mud, and daily use.
- Correct length for 6–8" lift — collapsed 19.57" / extended 30.31" (~10.74" travel).
Fitment
- 1994–2013 Ram / Dodge 2500 4WD — Front, 6–8" lift
- 1994–2012 Ram / Dodge 3500 4WD — Front, 6–8" lift
- 2006–2008 Dodge Ram 1500 4WD — Front, 6–8" lift
- Primary use: 5.9L and 6.7L Cummins 4WD with 6–8" front lift
Specs
- Part number: 24-187213 (supersedes F4-BE5-F255-H0)
- Series: B8 5100
- Body: 46mm ID smooth body, non-coilover
- Mounts: Stem (upper) / Eye 14.1mm (lower)
- Boot: Black bellows included
- Reservoir: None
- Damping: Non-adjustable
- Finish: Zinc plated
- Qty: Sold each (order 2)
Install notes
Manufacturer recommends this shock for a 6–8" front lift. Because aftermarket lift kits vary, measure your existing shock (stem base to eye center) before ordering. Some chassis bump stops may need modification so the shock does not bottom hard. Direct bolt-on for listed applications when length is correct.
Limited lifetime warranty from Bilstein.
