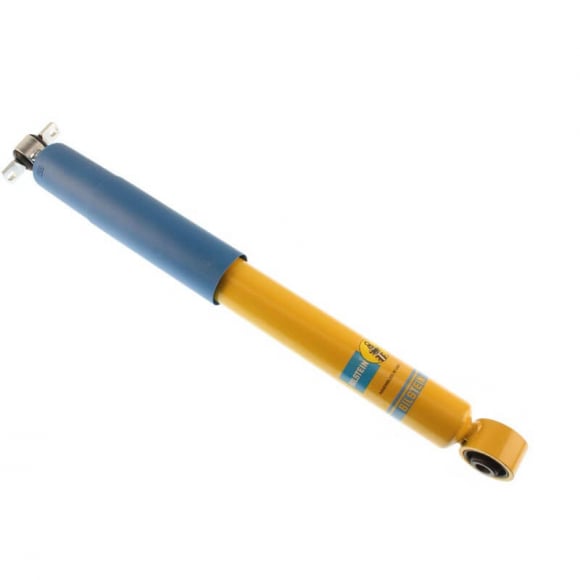

Bilstein 24-221948 B6 Series Rear Shock Absorber
Chevy Express & GMC Savana 2500 / 3500 / 4500

Upgrade worn factory rear shocks with the Bilstein B6 24-221948. This 46mm monotube, gas-pressure shock is application-tuned for Chevrolet Express and GMC Savana vans. It delivers fade-free control, a tighter ride under load, and a direct bolt-on fit at stock height. Sold individually. Limited lifetime warranty.

Replace the factory rear shocks on your Express or Savana and feel the difference immediately. The B6 (also known as B6 4600) is a performance-oriented OE replacement for stock ride height. Its 46mm monotube, nitrogen-charged design uses a larger working piston than typical twin-tube shocks, so heat dissipates faster and damping stays consistent on long highway runs, through city potholes, and when the van is loaded. A velocity-sensitive digressive piston reacts to changing road inputs: firmer when you need control, more compliant over smaller imperfections.

This is the rear shock for Express and Savana 2500, 3500, and 4500 applications. It is widely specified for heavier-duty vans and chassis, including many vehicles over 7,300 lbs GVWR and Class C / cutaway configurations. It mounts in the factory locations with a bar-pin upper mount and 14.1 mm eye lower mount, uses your existing springs, and includes Bilstein’s blue straight dust boot plus the signature yellow finish.

Owners typically install these to cut rear bounce, wallow, and front-to-back porpoising—especially on cargo vans, passenger vans, work trucks, and motorhome chassis. The result is more stable lane-change behavior, better composure when towing or hauling, and a ride that stays controlled instead of fading as the shocks heat up.

Sold individually. Two required per vehicle.

Key features

• 46mm monotube gas-pressure design for consistent, fade-free damping
• Velocity-sensitive digressive piston tuned for Express / Savana applications
• Direct bolt-on replacement at stock ride height (no lowering, no lift)
• Uses OEM springs and factory mounting points
• Bar-pin upper mount / 14.1 mm eye lower mount
• Blue straight dust boot included
• Corrosion-resistant yellow paint finish
• Stronger control when loaded, towing, or running high-GVWR duty
• Limited lifetime warranty (North America aftermarket)

Specifications

• Part number: 24-221948
• Series: Bilstein B6 (B6 4600)
• Position: Rear
• Quantity: Sold individually (2 per vehicle)
• Internal design: Monotube, gas-charged
• Body size: 46mm
• Collapsed length: 14.80 in (376 mm)
• Extended length: 23.23 in (590 mm)
• Upper mount: Bar pin
• Lower mount: Eye 14.1 mm
• Boot: Blue straight
• Finish: Yellow paint
• Spring seat: No
• Adjustable: No
• Country of origin: Mexico
• UPC: 651860707822
• Warranty: Limited lifetime

Vehicle fitment (rear)
Confirm year, model, and GVWR before ordering. This shock is commonly listed for:

• 1996–2023 Chevrolet Express 2500
• 1996–2023 Chevrolet Express 3500
• 2009–2019, 2022–2023 Chevrolet Express 4500
• 1996–2023 GMC Savana 2500
• 1996–2023 GMC Savana 3500
• 2009–2016, 2022–2023 GMC Savana 4500

On many 2500 applications this part is the heavy-duty version for vehicles with GVWR over 7,300 lbs. It is also used on compatible 3500/4500 vans and Class C chassis. Always verify against your VIN, GVWR plate, and the seller’s application guide.
