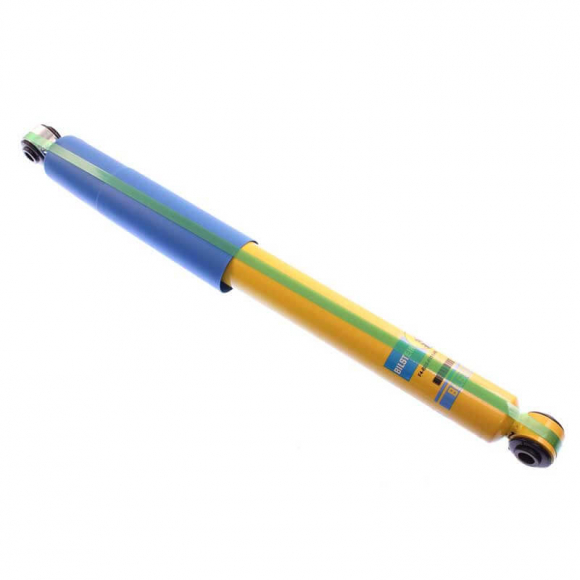

Bilstein 24-284714 B6 4600 Series Rear Shock Absorber

Upgrade your 2017-2022 Ford Super Duty with the Bilstein B6 4600 Series shock absorber (part #24-284714). This high-performance monotube gas-pressure shock is engineered as a direct-fit replacement for stock-height 2WD F-250 and F-350 trucks, delivering noticeably better handling, stability, and ride quality whether you’re daily driving, towing, or hitting the trails.

Why Choose the Bilstein 4600 Series?

Bilstein’s legendary monotube design with a 46mm digressive piston reacts instantly to changing road conditions. The high-pressure gas charge keeps performance consistent and fade-free even under heavy loads or repeated impacts. The result is tighter control, reduced body roll, improved comfort, and longer service life compared to factory twin-tube shocks.

Key Features & Benefits

• Monotube high-pressure gas design for superior heat dissipation and consistent damping
• 46mm digressive piston with velocity-sensitive valving for maximum comfort and control
• Direct bolt-on fitment — no modifications or spring changes required
• Yellow powder-coat finish with blue protective boot for durability and classic Bilstein styling
• Tuned specifically for stock-height Super Duty applications
• Excellent for towing, hauling, off-road use, and everyday driving
• Limited lifetime warranty

Fitment

• 2017-2022 Ford F-250 Super Duty 2WD (Rear)
• 2017-2022 Ford F-350 Super Duty 2WD (Rear)
• Compatible with 6.7L Powerstroke diesel as well as gas engines
• Stock ride height only (sold individually — 2 required per vehicle)

Specifications

• Position: Rear
• Body: Smooth monotube, 2.0" diameter
• Piston: 46mm
• Collapsed length: 16.34"
• Extended length: 26.17"
• Stroke: 9.83"
• Upper mount: Eye 16mm
• Lower mount: Eye 14.1mm
• Boot: Blue straight
• Finish: Yellow

Replace worn factory shocks and experience the difference that precision German engineering makes. The Bilstein 24-284714 gives your Super Duty the controlled, confident ride it was meant to have.
