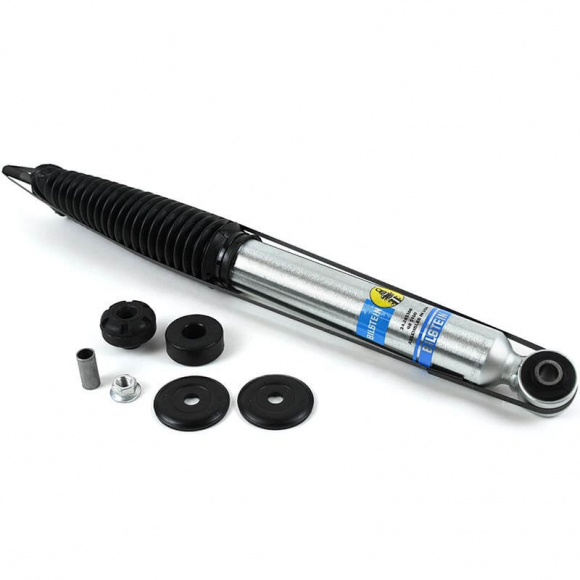

Bilstein 5100 Series Front Shock Absorber (24-285285)

Upgrade the ride and control of your lifted Super Duty with the Bilstein B8 5100 Series shock absorber, part number 24-285285. Specifically engineered as a direct-fit front shock for 2017-2026 Ford F-250 and F-350 4WD models with approximately 4" of front lift, this monotube shock is a popular choice among 6.7L Powerstroke owners who want better handling, stability, and durability without sacrificing everyday comfort.

Key Benefits

• Delivers consistent, fade-free performance under heavy loads, on the highway, or off-road
• Improves ride quality, body control, and handling compared to stock or lesser aftermarket shocks
• Application-specific digressive valving reacts instantly to changing road conditions
• Built to handle the demands of larger tires and a lifted stance common on modern Super Dutys

Features

• 46mm monotube gas-pressurized design for superior heat dissipation and longer life
• Velocity-sensitive digressive piston for balanced comfort and control
• Zinc-plated body with clear coating for excellent corrosion resistance
• Black bellows dust boot included
• Direct bolt-on installation (stem upper / eyelet lower mount)
• Sold individually (two required for a complete front pair)

Specs & Fitment

Position: Front Lift Height: Approximately 4" front lift (measure for confirmation due to varying aftermarket kits) Collapsed Length: 16.85" Extended Length: 25.70–25.75" Body Diameter: 46mm Internal Design: Monotube Finish: Zinc Plated Warranty: Limited Lifetime

Fits 2017–2026 Ford F-250 / F-350 Super Duty 4WD (gas or diesel, including 6.7L Powerstroke). Not intended for stock-height or 2WD applications.

Note: Due to the wide variety of aftermarket suspension systems, verify shock length by measuring from the base of the upper stem (where the hardware seats) to the center of the lower eyelet before ordering.

Give your Super Duty the controlled, confident ride it deserves with genuine Bilstein 5100 Series performance.
