Thumbnail Filmstrip of Bilstein 25-331912 B8 5160 Series Shock (Front) Images

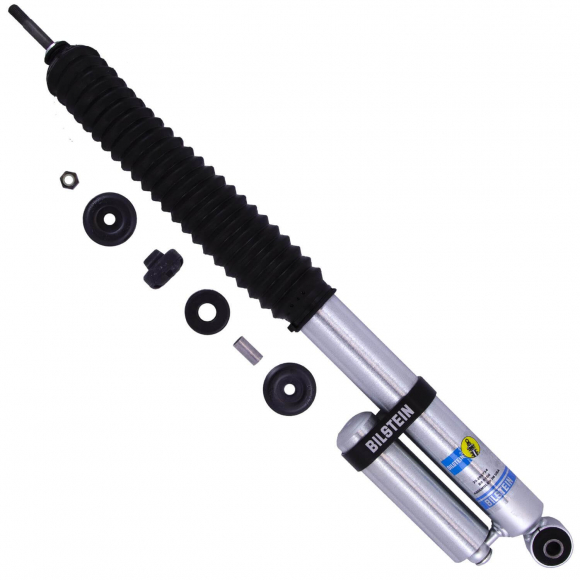

Bilstein 25-331912 B8 5160 Series Front Shock
Remote Reservoir | 4" Lift | Ram 2500 / 3500 4WD
Direct-fit monotube shock built for lifted heavy-duty Rams. The remote reservoir adds oil volume and cooling so damping stays consistent on the highway, under load, and off-road.
Bilstein B8 5160 shocks are made as a bolt-on upgrade for trucks that have already been lifted. Part number 25-331912 is the front application for 4" of lift on 4WD Ram 2500 and 3500 trucks. It uses Bilstein’s 46mm monotube design, velocity-sensitive digressive valving tuned for this chassis, and a remote reservoir that increases oil capacity and wheel travel versus a standard shock.
The extra reservoir oil helps shed heat during long washboard sections, towing, or repeated big hits so the shock is less likely to fade. A 360° swivel banjo hose and included billet reservoir clamp keep the install clean and low-profile on the stock mounts. Zinc plating protects the body from corrosion. Damping is non-adjustable and application-specific.
Sold individually. Two shocks are required per vehicle.
Key features
- Remote reservoir for more oil volume, better cooling, and extra wheel travel
- 46mm monotube, gas-charged design for fade-resistant damping
- Velocity-sensitive digressive valving tuned for this Ram application
- 360° swivel banjo hose fitting for flexible reservoir placement
- Billet reservoir clamp included
- Zinc-plated finish
- Direct fit to factory front mounts (stem upper / eye lower)
- Made in the USA
Fitment
Position: Front
Lift: 4"
Drive: 4WD
- 2014–2026 Ram 2500 4WD
- 2013–2026 Ram 3500 4WD
Confirm ride height and year/model before ordering. This part is not for stock-height trucks or 6" front lift applications (those use a different 5160 part number).
Specifications
Part number: 25-331912
Series: B8 5160
Type: Suspension shock absorber
Internal design: Monotube
Reservoir: Yes (remote)
Adjustable damping: No
Piston diameter: 46 mm
Shaft diameter: 14 mm
Body: Smooth body, non-coilover
Body diameter (OD): 2.0 in
Collapsed length: 16.66 in (423.2 mm)
Extended length: 25.47 in (647.0 mm)
Stroke: 8.81 in
Upper mount: Stem
Lower mount: Eye 14.1 mm
Finish: Zinc plated
Boot included: No
Spring seat: No
Billet reservoir clamp: Yes
Weight: ~10 lb
Qty per vehicle: 2 (sold each)
Country of origin: USA
Warranty: Limited 2-year
UPC: 00651860935867
What’s in the box
One B8 5160 remote-reservoir shock, billet reservoir clamp, and application hardware as supplied by Bilstein. Factory shock bolts are typically reused. Reservoir mounts are included.
