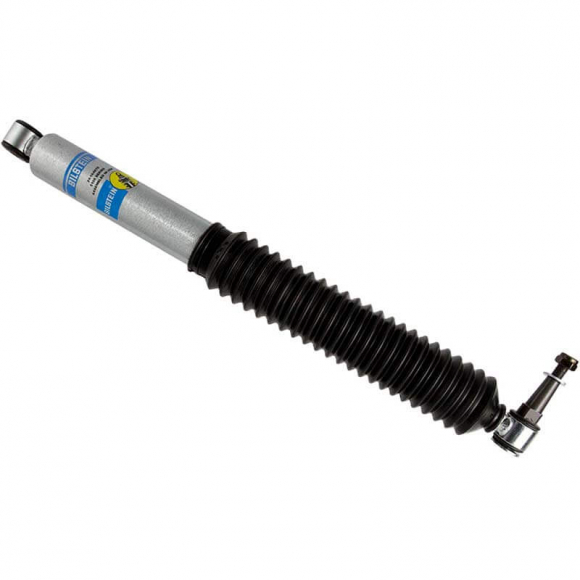

Bilstein 24-164870 B8 5100 Series Steering Damper

Restore precise steering control and eliminate the common vibration and “death wobble” issues found on older Rams with the Bilstein B8 5100 Series Steering Damper. This high-performance monotube damper uses the same proven high-pressure design as Bilstein’s shock absorbers to deliver instantaneous response to road inputs. Digressive valving effectively reduces steering vibrations while helping protect expensive components like tie rods, ball joints, and the steering box from excessive wear.

Ideal for trucks running larger tires and wheels, this damper is a direct bolt-on replacement for the factory unit. It features a durable zinc-plated body with Triple-C technology coating for excellent corrosion resistance and includes a black protective boot. Installation is straightforward using the original mounting points—no modifications required. Backed by Bilstein’s limited lifetime warranty.

Specifications
Part Number: 24-164870 Series: B8 5100 Body Design: 46mm Smooth Body Collapsed Length: 15.12 in (384 mm) Extended Length: 23.54 in (598 mm) Finish: Zinc Plated Mounting Style: Cantilever (upper) / Eye 12.7mm (lower) Quantity: Sold individually (1 required per vehicle)

Vehicle Fitment
Fits 2003–2007.5 Ram 2500 and 3500 4WD trucks equipped with the original cantilever-style steering linkage.

Important: This damper is designed only for the early cantilever (stem-to-eye) mounting configuration. You must verify your existing damper style before ordering. If your truck has the later eye-to-eye style linkage (common after the Mopar steering upgrade or recall), this part will not fit—use Bilstein 33-170794 instead.
