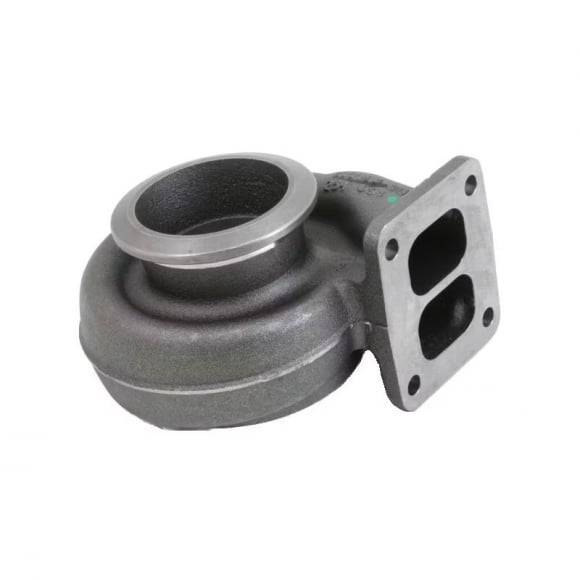

Thumbnail Filmstrip of S300 1.00 A/R 76mm T4 Twin Scroll Turbine Housing Borg Warner 177209 Images
The BorgWarner 177209 is a 1.00 A/R turbine housing for S300 frame turbochargers that use the 76mm turbine wheel (76.20mm O.D., 67.56mm exducer). It lets you change the A/R of an S300SX3, S300SX-E or S300SX-R build, or dress a supercore that ships without a turbine housing. A larger A/R reduces drive pressure and helps the turbo keep pulling at high rpm and high horsepower.
The housing uses a divided T4 twin scroll inlet and a 4.21 in. V-band (Marmon) outlet, so it bolts to common T4 manifolds and turbo mounts on diesel and gas performance builds. It is cast iron and is genuine BorgWarner AirWerks hardware. No core required.
Key Features & Benefits
- 1.00 A/R Volute: More exhaust flow and lower back pressure than the 0.91 or 0.88 housings for the same wheel.
- T4 Twin Scroll Inlet: Divided flange keeps exhaust pulses separated for a T4 divided manifold or mount.
- 4.21 in. V-Band Outlet: Clamp-style outlet for a clean, leak-free downpipe connection.
- 76mm Wheel Fit: Matched to the S300 76/68mm turbine wheel used across SX3, SX-E and SX-R models.
- Cast Iron Construction: Holds up to the heat cycling of diesel and high-boost applications.
Technical Specifications
- Manufacturer: BorgWarner (AirWerks)
- Part Number / SKU: 177209
- Product Type: Turbine Housing
- A/R: 1.00
- Inlet: T4 twin scroll (divided), volute
- Outlet: 4.21 in. V-band (Marmon)
- Turbine Wheel Fit: 76.20mm O.D. / 67.56mm exducer
- Material: Cast iron
- Turbo Compatibility: S300SX3 177272, 177280, 177283; S300SX-E supercores 13009097006, 13009097056, 13009097008; S300SX-R supercores 13767105020, 13767105022
- Core Requirement: No core required
Vehicle Fitment & Technical Installation Notes
Universal T4 fit for BorgWarner S300 turbochargers and supercores with the 76mm turbine wheel. Not for S300 models with the 80mm wheel.
Installation Tip: Clock the housing so the T4 inlet lines up with your manifold before snugging the clamp plates, then torque the cap screws evenly in a cross pattern. Use new hardware and a fresh T4 gasket, and check the turbine wheel spins freely by hand once the housing is tight.
