When it's time to revitalize your 1996-2002 5.9L Cummins truck, don't settle for a basic replacement—upgrade with the SunCoast SC-47-1 Category 1 (Cat 1) 47RE Rebuild Kit. This comprehensive kit provides everything you need to completely overhaul your 47RE transmission, offering significant improvements over the stock unit right out of the box. Designed to directly address the well-known weaknesses of the factory 47RE, this kit leverages SunCoast's renowned billet components to enhance durability and performance, allowing your transmission to handle more power and torque more efficiently. Whether your truck is 2WD or 4WD, this kit is the perfect foundation for a stronger, more reliable transmission.
- Billet Internal Enhancements: This kit immediately fixes common failure points by including a billet intermediate servo, billet band anchor, and billet band strut. These components provide the strength necessary to prevent failure under load.
- Enhanced Band Control: The new billet blueprinted 4.4 band lever is included to ensure precise and firmer band application, leading to better shifts and increased holding capacity.
- Custom Billet Low Stall Torque Converter: The included single-disc torque converter features a custom billet low stall stator. This design significantly lowers the stall speed, which directly translates to improved fuel efficiency and superior holding capacity when your truck is working hard.
- Premium Torque Converter Components: The converter is lined with durable carbon graphite clutch material and equipped with a precision CNC machined forged billet apply piston to eliminate deflection and ensure solid lock-up.
- Precision Endplay Adjustment: A new thrust washer kit with selective washers is provided, allowing you to accurately set the endplay for optimal internal component spacing and transmission longevity.
Investing in the SunCoast Cat 1 rebuild kit means you're not just fixing a worn-out transmission—you're intelligently upgrading it with engineered solutions. By replacing common failure components with high-strength billet parts and introducing a high-performance, low-stall billet torque converter, you are ensuring your 47RE can handle everything your 5.9L Cummins engine can dish out. Get the proven reliability and performance you demand; this SunCoast kit delivers a robust foundation for years of efficient, worry-free towing and driving.

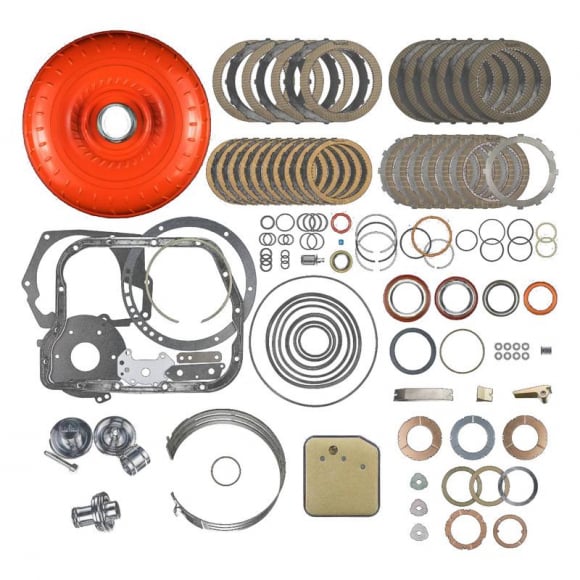

Kit Includes:
- 4 Raybestos GPZ forward frictions with steels
- 6 Raybestos GPZ clutches with steels
- 10 Raybestos overdrive clutches with steels
- Custom machined overdrive pressure plate
- .073 custom snap ring for forward clutch pack
- High flow 47RE transmission filter
- 47RE front pump bushing
- Raybestos Pro Series carbon fiber flex band
- Suncoast Pan Gasket
- SunCoast 47RE paper/rubber/gasket kit
- 47RE thrust washer kit
- SunCoast Billet accumulator piston
- SunCoast billet intermediate servo
- 4.4 billet band lever
- Billet band strut
- Billet band anchor
- SunCoast Billet single disc torque converter
Note: Does NOT include a flex plate
When it's time to revitalize your 1996-2002 5.9L Cummins truck, don't settle for a basic replacement—upgrade with the SunCoast SC-47-1 Category 1 (Cat 1) 47RE Rebuild Kit. This comprehensive kit provides everything you need to completely overhaul your 47RE transmission, offering significant improvements over the stock unit right out of the box. Designed to directly address the well-known weaknesses of the factory 47RE, this kit leverages SunCoast's renowned billet components to enhance durability and performance, allowing your transmission to handle more power and torque more efficiently. Whether your truck is 2WD or 4WD, this kit is the perfect foundation for a stronger, more reliable transmission.
Billet Internal Enhancements: This kit immediately fixes common failure points by including a billet intermediate servo, billet band anchor, and billet band strut. These components provide the strength necessary to prevent failure under load.
Enhanced Band Control: The new billet blueprinted 4.4 band lever is included to ensure precise and firmer band application, leading to better shifts and increased holding capacity.
Custom Billet Low Stall Torque Converter[...]
When it's time to revitalize your 1996-2002 5.9L Cummins truck, don't settle for a basic replacement—upgrade with the SunCoast SC-47-1 Category 1 (Cat 1) 47RE Rebuild Kit. This comprehensive kit provides everything you need to completely overhaul your 47RE transmission, offering significant improvements over the stock unit right out of the box. Designed to directly address the well-known weaknesses of the factory 47RE, this kit leverages SunCoast's renowned billet components to enhance durability and performance, allowing your transmission to handle more power and torque more efficiently. Whether your truck is 2WD or 4WD, this kit is the perfect foundation for a stronger, more reliable transmission.
- Billet Internal Enhancements: This kit immediately fixes common failure points by including a billet intermediate servo, billet band anchor, and billet band strut. These components provide the strength necessary to prevent failure under load.
- Enhanced Band Control: The new billet blueprinted 4.4 band lever is included to ensure precise and firmer band application, leading to better shifts and increased holding capacity.
- Custom Billet Low Stall Torque Converter: The included single-disc torque converter features a custom billet low stall stator. This design significantly lowers the stall speed, which directly translates to improved fuel efficiency and superior holding capacity when your truck is working hard.
- Premium Torque Converter Components: The converter is lined with durable carbon graphite clutch material and equipped with a precision CNC machined forged billet apply piston to eliminate deflection and ensure solid lock-up.
- Precision Endplay Adjustment: A new thrust washer kit with selective washers is provided, allowing you to accurately set the endplay for optimal internal component spacing and transmission longevity.
Investing in the SunCoast Cat 1 rebuild kit means you're not just fixing a worn-out transmission—you're intelligently upgrading it with engineered solutions. By replacing common failure components with high-strength billet parts and introducing a high-performance, low-stall billet torque converter, you are ensuring your 47RE can handle everything your 5.9L Cummins engine can dish out. Get the proven reliability and performance you demand; this SunCoast kit delivers a robust foundation for years of efficient, worry-free towing and driving.
Kit Includes:
- 4 Raybestos GPZ forward frictions with steels
- 6 Raybestos GPZ clutches with steels
- 10 Raybestos overdrive clutches with steels
- Custom machined overdrive pressure plate
- .073 custom snap ring for forward clutch pack
- High flow 47RE transmission filter
- 47RE front pump bushing
- Raybestos Pro Series carbon fiber flex band
- Suncoast Pan Gasket
- SunCoast 47RE paper/rubber/gasket kit
- 47RE thrust washer kit
- SunCoast Billet accumulator piston
- SunCoast billet intermediate servo
- 4.4 billet band lever
- Billet band strut
- Billet band anchor
- SunCoast Billet single disc torque converter
Note: Does NOT include a flex plate
