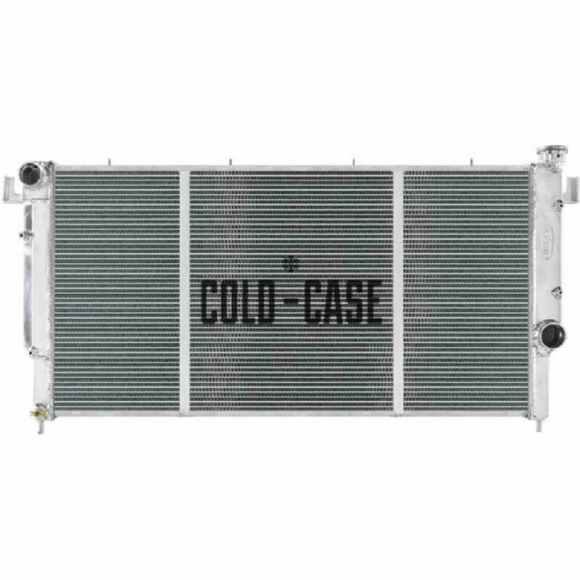

The Cold Case MOT569A is an all aluminum performance radiator for 1994-2002 Dodge Ram 2500 and 3500 trucks with the 5.9L Cummins, 12 valve or 24 valve, automatic or manual.

It uses an oversized 2-row core with two 1 inch tubes and 16 corrugated fins per inch, and every seam is TIG welded instead of crimped to a plastic tank. It is pressure tested and arrives polished.

• All Aluminum: 100% TIG welded tanks.
• 2-Row Core: Two 1 in tubes, 16 FPI.
• Auto Or Manual: Fits both transmissions.
• Pressure Tested: Checked before shipping.
• Direct Fit: No drilling or modification.

Technical Specifications

• Part Number: MOT569A
• Manufacturer: Cold Case
• Core: 36.4 x 19.2 in, 2-row
• Overall: 43.3 x 22 x 3 in
• Hoses: 1.75 in upper, 2 in lower
• Not Included: Shroud, fan, wiring
• Warranty: Limited Lifetime

Vehicle Fitment & Technical Installation Notes

• Fitment: 1994-2002 Dodge Ram 2500 and 3500 5.9L Cummins, 12V and 24V, automatic or manual.
• Installation Tip: Transfer the fan shroud and trans cooler lines carefully, then fill slowly and bleed air from the system with the heater on.
