Thumbnail Filmstrip of 2003-2009 5.9L / 6.7L Cummins Aluminum Performance Radiator Cold Case MOT570A Images

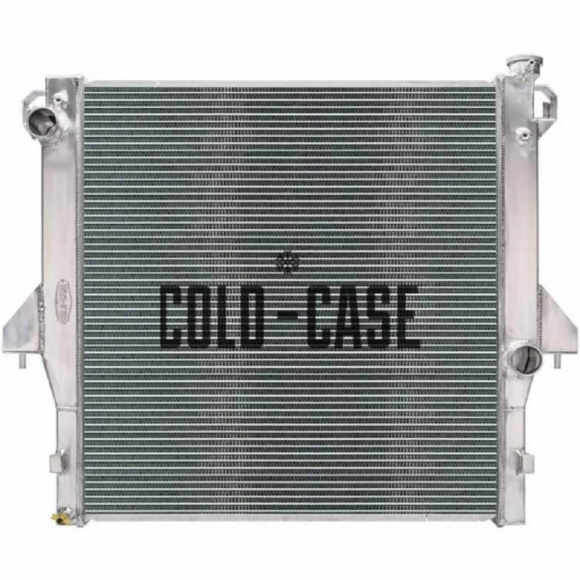

Replace the radiator in a 2003-2009 Dodge Ram 2500 or 3500 Cummins before a split plastic tank leaves the engine without coolant. Those stock tanks are crimped to the core, and the crimp is what opens up. Cold Case MOT570A is a TIG-welded aluminum radiator for the 5.9L and the 6.7L in these years, automatic or manual.
- Core: The two-row core is 28.25 inches tall and 27 inches wide, with 16 corrugated fins per inch. Core thickness is 40 mm and overall thickness is 1.75 inches.
- Part number: Cold Case MOT570A fits 2003-2009 Dodge Ram 2500 and 3500 trucks with the 5.9L or 6.7L Cummins.
- Hoses: The upper and lower necks are both 2 inches, so the stock hoses can seat on the same diameter.
- Overall size: Overall height is 30.5 inches. Cold Case lists the overall width as 35.75 inches at the mounting pegs and also as 37.75 inches. Measure the core support so the pegs land in your mounts.
- Does not fit: 1994-2002 trucks, or 2010-and-later Rams. Those years use a different radiator.
- Not in the box: The fan, shroud, and wiring are not included.
- Pressure test: The radiator is pressure tested.
- Warranty: Cold Case covers this radiator against material and workmanship defects for the life of the radiator.
Order today to secure your replacement. Measure the core-support width before you order, because Cold Case lists both 35.75 inches and 37.75 inches.
Replace the radiator in a 2003-2009 Dodge Ram 2500 or 3500 Cummins before a split plastic tank leaves the engine without coolant. Those stock tanks are crimped to the core, and the crimp is what opens up. Cold Case MOT570A is a TIG-welded aluminum radiator for the 5.9L and the 6.7L in these years, automatic or manual.
Core: The two-row core is 28.25 inches tall and 27 inches wide, with 16 corrugated fins per inch. Core thickness is 40 mm and overall thickness is 1.75 inches.
Part number: Cold Case MOT570A fits 2003-2009 Dodge Ram 2500 and 3500 trucks with the 5.9L or 6.7L Cummins.
Hoses: The upper and lower necks are both 2 inches, so the stock hoses can seat on the same diameter.
Overall size: Overall height is 30.5 inches. Cold Case lists the overall width as 35.75 inches at the mounting pegs and also as 37.75 inches. Measure the core support so the pegs land in your mounts.
Does not fit: 1994-2002 trucks, or 2010-and-later Rams. Those years use a different radiator.
Not in the box: The fan, shroud, and wiring are not included.
Pressure test: The radiator is pressure tested.
Warranty: Cold Case covers this radiator again[...]
Replace the radiator in a 2003-2009 Dodge Ram 2500 or 3500 Cummins before a split plastic tank leaves the engine without coolant. Those stock tanks are crimped to the core, and the crimp is what opens up. Cold Case MOT570A is a TIG-welded aluminum radiator for the 5.9L and the 6.7L in these years, automatic or manual.
- Core: The two-row core is 28.25 inches tall and 27 inches wide, with 16 corrugated fins per inch. Core thickness is 40 mm and overall thickness is 1.75 inches.
- Part number: Cold Case MOT570A fits 2003-2009 Dodge Ram 2500 and 3500 trucks with the 5.9L or 6.7L Cummins.
- Hoses: The upper and lower necks are both 2 inches, so the stock hoses can seat on the same diameter.
- Overall size: Overall height is 30.5 inches. Cold Case lists the overall width as 35.75 inches at the mounting pegs and also as 37.75 inches. Measure the core support so the pegs land in your mounts.
- Does not fit: 1994-2002 trucks, or 2010-and-later Rams. Those years use a different radiator.
- Not in the box: The fan, shroud, and wiring are not included.
- Pressure test: The radiator is pressure tested.
- Warranty: Cold Case covers this radiator against material and workmanship defects for the life of the radiator.
Order today to secure your replacement. Measure the core-support width before you order, because Cold Case lists both 35.75 inches and 37.75 inches.
