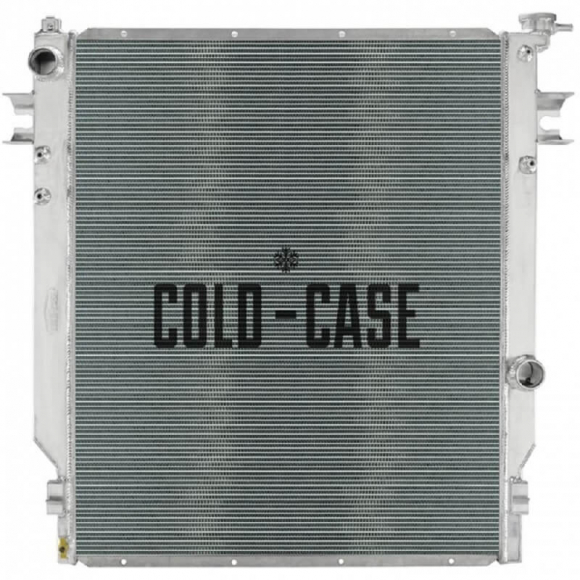

Fix a cracked plastic tank on a 2010-2012 Ram 2500 or 3500 6.7L Cummins before the cooling system loses coolant at the crimp. This truck uses a tall radiator, and the short 2013-2018 core will not fill the opening. Cold Case MOT571A is a TIG-welded aluminum radiator for automatic and manual trucks.
- Core: Two 1-inch tubes and 16 corrugated fins per inch sit in a core that is 32.2 inches tall, 26.6 inches wide, and 3 inches thick.
- Part number: Cold Case MOT571A fits 2010-2012 Ram 2500 and 3500 trucks with the 6.7L Cummins.
- Mounting size: Overall height is 34 inches and overall width is 34.15 inches at the bolt holes. The upper and lower hoses are both 1.75 inches.
- Does not fit: 2013-2018 Ram 6.7L trucks. Those trucks use MOT572A, which has a 21.1-inch core, not this 32.2-inch core.
- Not in the box: The fan, shroud, and wiring are not included.
- Pressure test: The radiator is pressure tested.
- Warranty: Cold Case covers this radiator against material and workmanship defects for the life of the radiator.
Order today to secure your replacement. Confirm the truck is a 2010-2012 Ram 2500 or 3500 6.7L, not a 2013-2018.
