Thumbnail Filmstrip of 1998.5-2007 5.9L Cummins Coolant Filtration System DieselSite CFIKD05 Images
Coolant filters are not a new idea to the diesel engine world. They come in most OEM applications for medium duty and OTR tractor trailer rigs. The idea was somehow tossed aside for light duty applications, most likely due to cost. For our light duty trucks it is a very important issue that needed to be addressed. Many diesel engines - like the Powerstroke - are cast with sand in the process. This sand is NOT completely removed from the system. In fact, much of this sand leaches out of the casting over time. The sand wears away at water pump seals, hoses and radiators. Removal of this sand can greatly increase your water pump life.
In addition to sand, there are other things that the filter is removing. SCAs, or supplimental coolant additives used in protecting against cavitation, often flake off the walls. This "precipitate" is a very abrasive particle - like a scale - floating around freely in the system unless caught by a filter.
The DIESELSITE Coolant Filter Install system will remove the loose particles in your cooling system and give your water pumps, radiators, water necks and radiator hoses the protection they need from these abrasive materials. Wear is virtually eliminated by the removal of undesirable elements in your system. The desireable elements, like the actual chemical used in the SCA is not removed.
HOW DOES IT WORK?
The DIESELSITE Coolant Filter Kit is a bypass-style system that filters a small amount of the coolant on each pass. By using a spin on filter we make it easy for you to change your coolant filter at regular intervals. These filters will remove all solid particles -- new or old. It is never too late to install a coolant filter in order to extend the longevity of your cooling system components. While you cannot reverse the damage that is already done, you can eliminate further damage from occuring. This kit is a must for every truck.
In the past 9 years of doing business, we have seen a pattern of water pump failure. If you are one of the unlucky owners who have lost your pump between 40,000 and 80,000 miles it isn't too late to protect your new pump. While some damage to your pump may already be done, a coolant filter install kit will extend the longevity of your pump before it fails. AND, it will definitely insure that your next water pump will last much longer than your first one did.
The DIESELSITE Coolant Filter Install Kit includes all fittings, hose and stainless steel clamps needed for installation.
Recommendations on filter changes: Use one filter every three months for the first nine months after installation. After the 4th filter is installed your filter should be changed once per year.
Coolant filters are not a new idea to the diesel engine world. They come in most OEM applications for medium duty and OTR tractor trailer rigs. The idea was somehow tossed aside for light duty applications, most likely due to cost. For our light duty trucks it is a very important issue that needed to be addressed. Many diesel engines - like the Powerstroke - are cast with sand in the process. This sand is NOT completely removed from the system. In fact, much of this sand leaches out of the casting over time. The sand wears away at water pump seals, hoses and radiators. Removal of this sand can greatly increase your water pump life.
In addition to sand, there are other things that the filter is removing. SCAs, or supplimental coolant additives used in protecting against cavitation, often flake off the walls. This "precipitate" is a very abrasive particle - like a scale - floating around freely in the system unless caught by a filter.
The DIESELSITE Coolant Filter Install system will remove the loose particles in your cooling system and give your water pumps, radiators, water necks and radiator hoses the protection they need from these abrasive materials[...]
Coolant filters are not a new idea to the diesel engine world. They come in most OEM applications for medium duty and OTR tractor trailer rigs. The idea was somehow tossed aside for light duty applications, most likely due to cost. For our light duty trucks it is a very important issue that needed to be addressed. Many diesel engines - like the Powerstroke - are cast with sand in the process. This sand is NOT completely removed from the system. In fact, much of this sand leaches out of the casting over time. The sand wears away at water pump seals, hoses and radiators. Removal of this sand can greatly increase your water pump life.
In addition to sand, there are other things that the filter is removing. SCAs, or supplimental coolant additives used in protecting against cavitation, often flake off the walls. This "precipitate" is a very abrasive particle - like a scale - floating around freely in the system unless caught by a filter.
The DIESELSITE Coolant Filter Install system will remove the loose particles in your cooling system and give your water pumps, radiators, water necks and radiator hoses the protection they need from these abrasive materials. Wear is virtually eliminated by the removal of undesirable elements in your system. The desireable elements, like the actual chemical used in the SCA is not removed.
HOW DOES IT WORK?
The DIESELSITE Coolant Filter Kit is a bypass-style system that filters a small amount of the coolant on each pass. By using a spin on filter we make it easy for you to change your coolant filter at regular intervals. These filters will remove all solid particles -- new or old. It is never too late to install a coolant filter in order to extend the longevity of your cooling system components. While you cannot reverse the damage that is already done, you can eliminate further damage from occuring. This kit is a must for every truck.
In the past 9 years of doing business, we have seen a pattern of water pump failure. If you are one of the unlucky owners who have lost your pump between 40,000 and 80,000 miles it isn't too late to protect your new pump. While some damage to your pump may already be done, a coolant filter install kit will extend the longevity of your pump before it fails. AND, it will definitely insure that your next water pump will last much longer than your first one did.

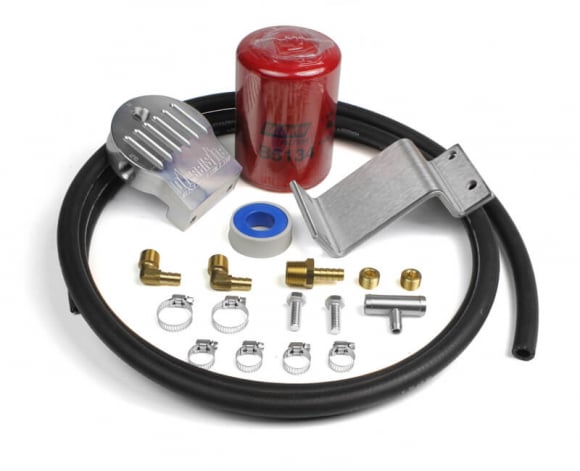

The DIESELSITE Coolant Filter Install Kit includes all fittings, hose and stainless steel clamps needed for installation.
Recommendations on filter changes: Use one filter every three months for the first nine months after installation. After the 4th filter is installed your filter should be changed once per year.
Fits: 5.9 Cummins 1998.5-2002
Fits: 5.9|6.7 Cummins 1989-2012
Fits: 5.9 Cummins 1998.5-2007
Fits: 5.9/6.7 Cummins 1994-2018 (For Fleece Coolant Bypass Kits)
