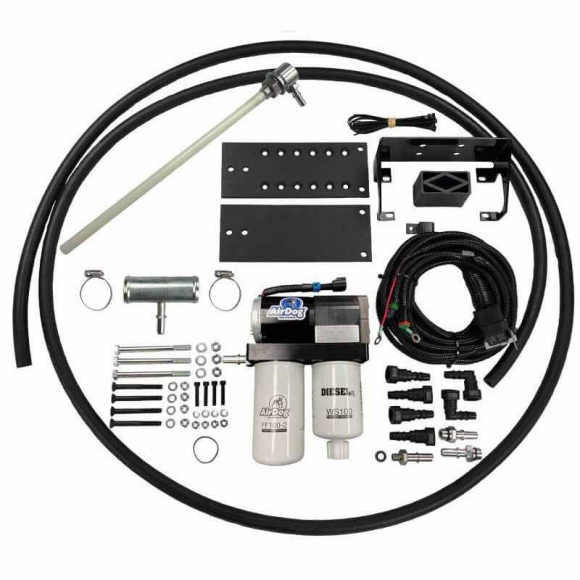

Thumbnail Filmstrip of 1989-1993 5.9L 12V Cummins FP-150-4G Air/Fuel Separation System AirDog A4SPBD137 Images
The AirDog FP-150-4G (A4SPBD137) is a frame-mounted air and fuel separation system for the 1989-1993 Dodge Ram with the VE-pump 5.9L Cummins. The pressure side connects directly to the VE injection pump, bypassing the factory fuel filter housing and mechanical lift pump.
Fuel is pulled from the tank through a 1/2 inch draw straw, and separated air and vapor return to the tank through a filler neck tee. The system is rated at 150 gallons per hour.
- 150 GPH Flow: Plenty of volume for a modified 12-valve.
- Air and Vapor Separation: Separated air returns to the tank through a filler neck tee.
- Direct VE Pump Feed: Bypasses the factory filter housing and lift pump.
- Frame Rail Mounting: Sandwich plate mounting system included.
Technical Specifications
- Part Number: A4SPBD137 (FP-150-4G)
- Flow Rate: 150 GPH
- Fuel Pickup: 1/2 inch draw straw
- Core Requirement: No core required
Vehicle Fitment & Technical Installation Notes
- Fitment: 1989-1993 Dodge Ram 250/350 with the 5.9L 12-valve Cummins and Bosch VE rotary injection pump
- Installation Tip: This kit uses a 1/2 inch draw straw in the tank instead of the factory suction fitting, so plan for access to the fuel tank sending unit.
The AirDog FP-150-4G (A4SPBD137) is a frame-mounted air and fuel separation system for the 1989-1993 Dodge Ram with the VE-pump 5.9L Cummins. The pressure side connects directly to the VE injection pump, bypassing the factory fuel filter housing and mechanical lift pump.
Fuel is pulled from the tank through a 1/2 inch draw straw, and separated air and vapor return to the tank through a filler neck tee. The system is rated at 150 gallons per hour.
150 GPH Flow: Plenty of volume for a modified 12-valve.
Air and Vapor Separation: Separated air returns to the tank through a filler neck tee.
Direct VE Pump Feed: Bypasses the factory filter housing and lift pump.
Frame Rail Mounting: Sandwich plate mounting system included.
Technical Specifications
Part Number: A4SPBD137 (FP-150-4G)
Flow Rate: 150 GPH
Fuel Pickup: 1/2 inch draw straw
Core Requirement: No core required
Vehicle Fitment & Technical Installation Notes
Fitment: 1989-1993 Dodge Ram 250/350 with the 5.9L 12-valve Cummins and Bosch VE rotary injection pump
Installation Tip: This kit uses a 1/2 inch draw straw in the[...]
The AirDog FP-150-4G (A4SPBD137) is a frame-mounted air and fuel separation system for the 1989-1993 Dodge Ram with the VE-pump 5.9L Cummins. The pressure side connects directly to the VE injection pump, bypassing the factory fuel filter housing and mechanical lift pump.
Fuel is pulled from the tank through a 1/2 inch draw straw, and separated air and vapor return to the tank through a filler neck tee. The system is rated at 150 gallons per hour.
- 150 GPH Flow: Plenty of volume for a modified 12-valve.
- Air and Vapor Separation: Separated air returns to the tank through a filler neck tee.
- Direct VE Pump Feed: Bypasses the factory filter housing and lift pump.
- Frame Rail Mounting: Sandwich plate mounting system included.
Technical Specifications
- Part Number: A4SPBD137 (FP-150-4G)
- Flow Rate: 150 GPH
- Fuel Pickup: 1/2 inch draw straw
- Core Requirement: No core required
Vehicle Fitment & Technical Installation Notes
- Fitment: 1989-1993 Dodge Ram 250/350 with the 5.9L 12-valve Cummins and Bosch VE rotary injection pump
- Installation Tip: This kit uses a 1/2 inch draw straw in the tank instead of the factory suction fitting, so plan for access to the fuel tank sending unit.
