Thumbnail Filmstrip of 1994-1998 5.9L 12V Cummins FP-100-4G Air/Fuel Separation System AirDog A4SPBD100 Images

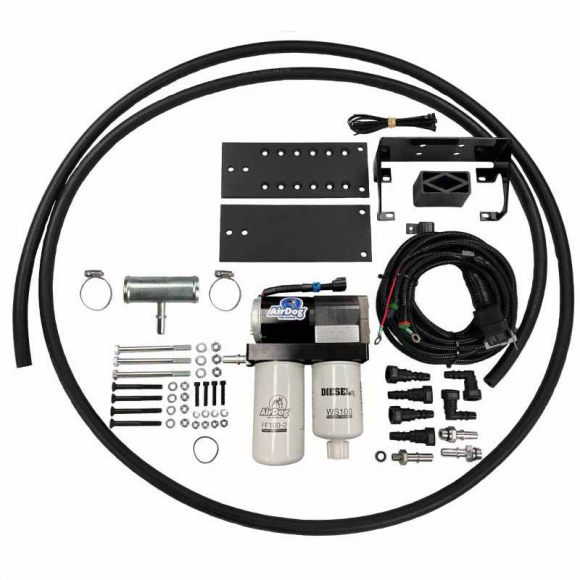

The factory lift pump on a 12 valve feeds the P-pump weak pressure and lets air through. The AirDog FP-100-4G replaces it with a frame mounted 100 GPH air and fuel separation system. It fits 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and P7100 pump.
Flow: 100 GPH, for stock and lightly modified trucks. No core charge applies to this part.
Key Features & Benefits
- Suction: Uses the factory suction port in the fuel module.
- Pressure side: Pressure line goes directly into the P-pump, bypassing the factory filter housing and block mounted pump.
- Returns: Injection pump return ties into the injector return line. Air and vapor return to the tank through a filler neck tee.
- Mounting: Frame rail mount with the supplied sandwich plate system.
Technical Specifications
- Manufacturer/Brand: AirDog
- Part Number/SKU: A4SPBD100 (pftA4SPBD100)
- Product Type: FP-100-4G Air/Fuel Separation System
- Truck Compatibility: 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and P7100 pump
- Engine Platform: 5.9L 12V Cummins
- Core Requirement: No core required
Vehicle Fitment & Technical Installation Notes
Fits 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and P7100 pump.
Installation Tip: See the AirDog install manual for the full parts list.
The factory lift pump on a 12 valve feeds the P-pump weak pressure and lets air through. The AirDog FP-100-4G replaces it with a frame mounted 100 GPH air and fuel separation system. It fits 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and P7100 pump.
Flow: 100 GPH, for stock and lightly modified trucks. No core charge applies to this part.
Key Features & Benefits
Suction: Uses the factory suction port in the fuel module.
Pressure side: Pressure line goes directly into the P-pump, bypassing the factory filter housing and block mounted pump.
Returns: Injection pump return ties into the injector return line. Air and vapor return to the tank through a filler neck tee.
Mounting: Frame rail mount with the supplied sandwich plate system.
Technical Specifications
Manufacturer/Brand: AirDog
Part Number/SKU: A4SPBD100 (pftA4SPBD100)
Product Type: FP-100-4G Air/Fuel Separation System
Truck Compatibility: 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and P7100 pump
Engine Platform: 5.9L 12V Cummins
Core Requirement: No core required
Vehic[...]
The factory lift pump on a 12 valve feeds the P-pump weak pressure and lets air through. The AirDog FP-100-4G replaces it with a frame mounted 100 GPH air and fuel separation system. It fits 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and P7100 pump.
Flow: 100 GPH, for stock and lightly modified trucks. No core charge applies to this part.
Key Features & Benefits
- Suction: Uses the factory suction port in the fuel module.
- Pressure side: Pressure line goes directly into the P-pump, bypassing the factory filter housing and block mounted pump.
- Returns: Injection pump return ties into the injector return line. Air and vapor return to the tank through a filler neck tee.
- Mounting: Frame rail mount with the supplied sandwich plate system.
Technical Specifications
- Manufacturer/Brand: AirDog
- Part Number/SKU: A4SPBD100 (pftA4SPBD100)
- Product Type: FP-100-4G Air/Fuel Separation System
- Truck Compatibility: 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and P7100 pump
- Engine Platform: 5.9L 12V Cummins
- Core Requirement: No core required
Vehicle Fitment & Technical Installation Notes
Fits 1994-1998 Dodge Ram 2500 and 3500 with the 5.9L 12 valve Cummins and P7100 pump.
Installation Tip: See the AirDog install manual for the full parts list.
