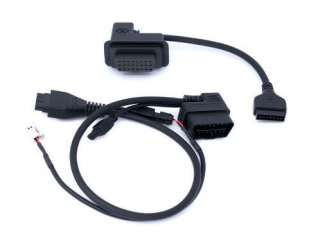

6.7 Cummins SGM Adapter | EZ Lynk 100EE00C09
EZ Lynk Auto Agent 2 OBDII cable with 18-24 RAM Security Gateway Module adapter.
Unlock full diagnostics and tuning on 2018-2024 RAM 2500/3500 6.7L Cummins trucks.
This cable is required for EZ Lynk Auto Agent 2. It bypasses the factory Security Gateway Module so you can read data, flash calibrations, run updates, and complete vehicle functions the stock OBD port will not allow.
Why You Need It
Starting in 2018, RAM 2500 and 3500 trucks with the 6.7L Cummins added a Security Gateway Module (SGM).
That module locks down the network.
A standard OBD cable cannot reach the ECM/TCM for tuning, module updates, or many diagnostic routines.
The EZ Lynk 100EE00C09 solves that.
It combines a 20.5-inch OBDII diagnostic cable with the dedicated SGM adapter so Auto Agent 2 can talk to the truck as a full-access tool, not just a basic code reader.
How It Connects
Plug the OBD connector into the port under the dash.
Plug the SGM adapter into the black-and-green STAR connector on the far left side of the dash, near the door frame.
No splicing.
No radio removal.
No back-pinning.
Once connected, the Auto Agent 2 app can monitor live data, diagnose issues, and support tuner calibrations on supported 2018-2024 6.7L Cummins Rams.
Important Compatibility Note
This part is for EZ Lynk Auto Agent 2 only.
It is not compatible with Auto Agent 3.
Auto Agent 3 uses a different SGM adapter (typically 100EE00C23).
Key Features
- Required SGM bypass for 2018+ RAM 2500/3500 6.7L Cummins
- Full OBDII and network access with EZ Lynk Auto Agent 2
- Supports diagnostics, live data, ECM/TCM updates, relearns, and tuning
- 20.5-inch cable for clean routing and cabin placement
- Direct plug-in install at the OBD port and STAR connector
- Sold as each
Fitment
- 2018-2024 RAM 2500 6.7L Cummins
- 2018-2024 RAM 3500 6.7L Cummins
- EZ Lynk Auto Agent 2 only (not Auto Agent 3)
- Typical trims: Big Horn, Laramie, Limited, Longhorn, Lone Star, Power Wagon, SLT, Tradesman
What’s Included
- EZ Lynk OBDII diagnostic cable
- Integrated 18-24 RAM SGM adapter
- Part number 100EE00C09
Install Notes
- Locate the OBD-II port under the dash
- Find the two STAR connectors on the far left under the dash, near the door frame
- Plug the SGM adapter into the black and green STAR connector
- Connect the OBD end
- Secure the Auto Agent with cable ties so it is not kicked
- Open the Auto Agent app and follow the on-screen prompts
- Typical install time is about 10 minutes
Compatibility Warning
- Works with EZ Lynk Auto Agent 2
- Does not work with EZ Lynk Auto Agent 3 / 3.0
- Required for full function on 2018-2024 Cummins Rams when using Auto Agent 2
