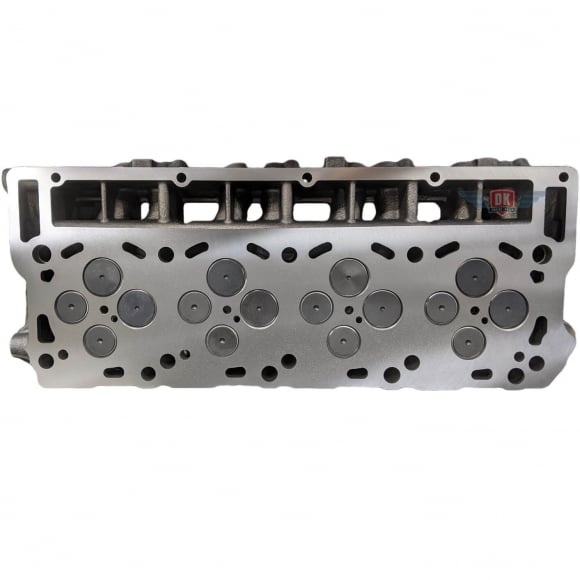

6.0 Powerstroke 20MM Loaded Cylinder Head – DK Engine Parts (DK-FD6.0-20CHL)

This is ONE (1) cylinder head — sold individually.

Restore strength and reliability to your late-model 6.0L Powerstroke with the DK Engine Parts 20MM Loaded Cylinder Head. Designed specifically for 2006–2007 6.0L engines that use the larger 20mm head dowel pins, this head is a major upgrade over factory and remanufactured options.

Why This Head Stands Out

Factory 6.0L cylinder heads are notorious for cracking around the glow plugs and valve seats, leading to blown head gaskets, coolant intrusion, and overheating. The DK-FD6.0-20CHL solves these problems with a brand-new, improved casting that reinforces the factory weak points.

Unlike remanufactured heads that simply patch old castings, this is a fresh casting built tougher from the start.

Key Features & Benefits

• Reinforced New Casting — Extra strength around glow plugs and valve seats to resist cracking under heat and pressure.
• Fully Loaded & Ready to Install — Comes completely assembled with all-new valvetrain components, saving hours of shop time and labor.
• 20mm Dowel Pin Compatible — Precision fitment for 2006–2007 engines. Using the correct dowel size is critical for proper head gasket alignment and sealing.
• Includes Hardened Valve Seats & Injector Cups — Built for long-term durability.
• High-Performance Ready — Stronger foundation that can be further upgraded (O-ringing recommended for high-boost or heavily modified trucks).

What’s Included (Loaded Head)

• New cylinder head casting (reinforced design)
• New intake and exhaust valves
• New valve springs, retainers, and keepers/locks
• New valve seals
• Hardened valve seats
• Injector cups/sleeves installed

Important Fitment Notes

• Fits: 2006–2007 Ford 6.0L Powerstroke (F-Series & E-Series, VIN “P”)
• These heads use 10mm rocker assembly bolts (different from earlier 18mm dowel heads).
• Verify before ordering:
  • Your engine uses 20mm head dowel pins (common on later 2006–2007 builds).
  • Rocker bolt size is 10mm.

Sold individually — order two for a complete engine refresh.

Recommended Supporting Parts (Not Included)

• Head studs (ARP strongly recommended over factory bolts)
• MLS head gaskets (20mm specific)
• Head gasket set

Warranty: 1-Year Limited Warranty

This DK Engine 20MM Loaded Cylinder Head gives your 6.0L the durable, ready-to-run foundation it should have had from the factory. Whether you’re doing a reliability refresh or building a solid base for performance upgrades, this is the smart choice for 2006–2007 6.0 Powerstroke owners.

Note: Always confirm dowel pin size and rocker bolt size on your specific engine before ordering. Proper installation with head studs and correct torque procedures is highly recommended for best results.
