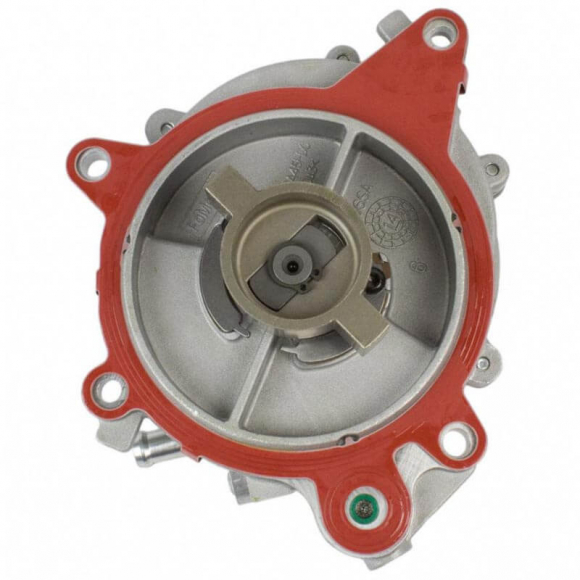

Engineered specifically for 2011 through 2016 Ford F-250, F-350, F-450, and F-550 Super Duty trucks powered by the 6.7L Powerstroke V8 turbo diesel engine, the Genuine Ford Brake Booster Vacuum Pump (Part # BC3Z-2A451-B) supplies the necessary negative pressure to operate the power brake booster. Because diesel engines lack natural intake manifold vacuum, turbo-diesel applications rely on an engine-driven mechanical vacuum pump to provide power-assist braking capabilities.

Over high mileage, internal pump vanes, drive gears, and shaft seals wear down, leading to a hard brake pedal feel, delayed vacuum recovery, and oil weeping around the pump housing. Part number BC3Z-2A451-B represents the authentic Ford factory replacement, ensuring correct vacuum draw, factory line hookups, and dependable braking safety with zero core charge.

Key Features & Benefits

• Genuine Ford OEM Component: Manufactured to exact factory specifications for perfect mounting alignment and reliable vacuum output.
• Restores Power Brake Assist: Eliminates hard brake pedals and provides immediate vacuum evacuation for confident stopping power under heavy towing loads.
• Precision Internal Vane Design: Built with high-grade rotor vanes and wear-resistant housing metallurgy to ensure long service life under continuous engine accessory drive loads.
• Direct Factory Fitment: Features exact factory port fittings and mounting bolt configuration for a straightforward, leak-free installation.
• Zero Core Charge: Brand-new outright factory part requiring no core deposit or core return shipping.

Technical Specifications

• Manufacturer / Brand: Ford Motor Company / Motorcraft
• Manufacturer Part Number / SKU: BC3Z-2A451-B
• Alternative Part Numbers: BC3Z2A451B / BC34-2A451-BA
• Product Type: Mechanical Brake Booster Vacuum Pump Assembly
• Drive Type: Engine-Driven Auxiliary Accessory Drive
• Truck Platform: 2011–2016 Ford Super Duty (F-250, F-350, F-450, F-550)
• Engine Platform: 6.7L Powerstroke V8 Turbo Diesel (Gen 1 Platform)
• Core Requirement: None
• Warranty: Ford Motorcraft 2-Year / Unlimited-Mile Limited Warranty

Vehicle Fitment & Technical Installation Notes

• 2011–2016 Ford F-250 Super Duty – 6.7L Powerstroke V8 Turbo Diesel
• 2011–2016 Ford F-350 Super Duty – 6.7L Powerstroke V8 Turbo Diesel
• 2011–2016 Ford F-450 Super Duty – 6.7L Powerstroke V8 Turbo Diesel
• 2011–2016 Ford F-550 Super Duty – 6.7L Powerstroke V8 Turbo Diesel
• Fits Model Years: 2011, 2012, 2013, 2014, 2015, 2016
• Installation Tip: Disconnect the negative battery terminals before servicing. Disconnect the brake booster vacuum supply line carefully from the pump nipple to avoid damaging the quick-disconnect lock tabs. Unbolt the mounting fasteners, swap the pump assembly, and ensure the internal drive gear or coupling engages properly. Torque mounting bolts to factory specifications and inspect the vacuum line check valve for proper operation.
