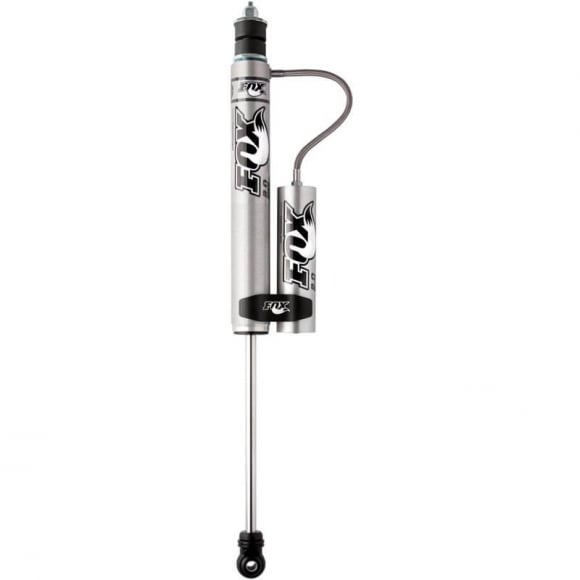

The Fox 980-24-944 2.0 Performance Series Reservoir Shock Absorber for your 94-13 Ram Pickup delivers FOX's industry-leading and race-dominating performance in an affordable, hassle-free bolt-on package. Its heat-reducing design includes a metal-impacted clear anodized aluminum shock body that dissipates heat faster than conventional steel body shocks. The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race-developed high-flow damping piston matched with application-specific valving provides the 2.0 Performance Series Reservoir shock with predictable ride quality capable of handling the roughest road conditions.
Specifications:
- Body: 2.0" Metal-impacted 6061-T6 aluminum resists rust over time
- Body Plating: Clear-anodized for a durable finish
- External Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
- Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft: 5/8" hard chrome plated heat-treated alloy steel
- Piston: Race-developed high-flow piston design
- Valving: Application-specific valving to maximize performance
- Seals: Redundant sealing pack system (main seal, wiper seal, scraper seal)
- Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
- Bushings: Quiet nitrile rubber allows for increased suspension articulation
- Mounting: Direct replacement for stock and aftermarket lift kits
Dimensions:
- Extended Length: 24.800"
- Collapsed Length: 15.200"
- Travel: 9.600"
- Top Mount: SM3
- Bottom Mount: ES7
Applications:
- 94-13 Dodge Ram 2500 4WD Lifted 0"-2" (Front)
- 94-12 Dodge Ram 3500 4WD Lifted 0"-2" (Front)
Warranty Info:
- 1 Year Limited Warranty
Note: *0"-2" lift is suggested by the manufacturer. Due to the many different aftermarket suspension systems, it is recommended that a measurement is taken for proper application. Shock absorbers are sold individually.
Upgrade your Ram Pickup with the Fox 980-24-944 2.0 Performance Series Reservoir Shock Absorber for superior heat dissipation, increased oil capacity, and a durable, race-inspired design.
