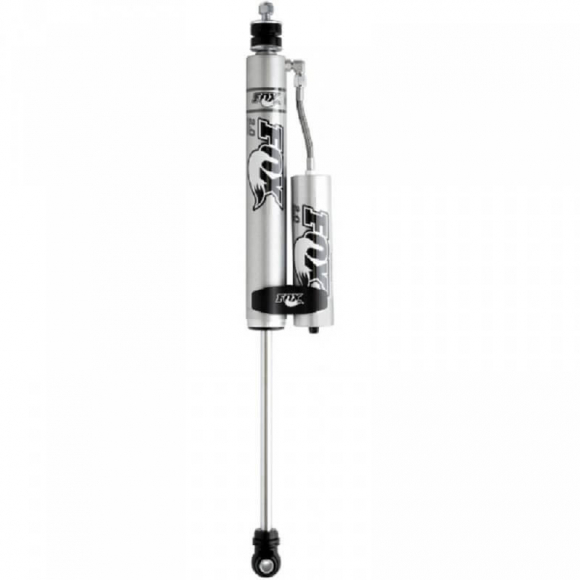

The Fox 980-24-960 2.0 Performance Series Reservoir Shock Absorber for your 2001-2010 GM 2500HD/3500HD delivers FOX's industry-leading and race-dominating performance in an affordable, hassle-free bolt-on package. Its heat-reducing design includes a metal-impacted, clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. The external reservoir increases oil and nitrogen capacity while providing a striking race look.

The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race-developed high-flow damping piston, matched with application-specific valving, provides the 2.0 Performance Series Reservoir shock with predictable ride quality capable of handling the roughest road conditions.

Specifications:

• Body: 2.0" Metal impacted 6061-T6 aluminum will resist rust over time
• Body Plating: Clear-anodized for a durable finish
• External Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8" hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Bushings: Quiet nitrile rubber allows for increased suspension articulation
• Mounting: Direct replacement for stock and aftermarket lift kits

Measurements:

• Ext. Length: 21.30
• Col. Length: 13.20
• Travel: 8.100
• Top Mount: SM3
• Bottom Mount: ES8

Applications:

• 2001-2010 GM 2500HD/3500HD - Front, Lifted 4"-6"

Note: Lift height is suggested by the manufacturer. Due to the many different aftermarket suspension systems, it is recommended to take measurements for proper application. Shock absorbers are sold individually. Product may appear different than image.
