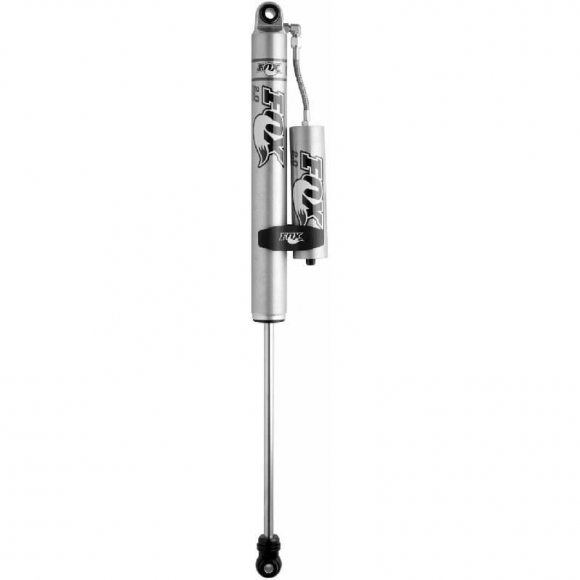

Thumbnail Filmstrip of Powerstroke 2.0 Performance Series Reservoir Shock Absorber Fox 985-24-105 Images
The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Specifications:
Body: 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
Body Plating: Clear-anodized for a durable finish
Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft: 5/8" hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston design
Valving: Application specific valving to maximize performance
Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
Bushings: Quiet nitrile rubber allows for increased suspension articulation
Extended (In): 33.520
Compressed (In): 19.900
Travel (In): 13.620
Top Mount: Eyelet
Bottom Mount: Eyelet
Fitment Notes: Includes Billet Reservoir Clamp
The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Specifications:
Body: 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
Body Plating: Clear-anodized for a durable finish
Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft: 5/8" hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston design
Valving: Application[...]
The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Specifications:
Body: 2.0" Impact extruded 6061-T6 aluminum will resist rust over time
Body Plating: Clear-anodized for a durable finish
Reservoir: 2.0" Smooth bore 6061-T6 Aluminum is hard anodized
Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft: 5/8" hard chrome plated heat-treated alloy steel
Piston: Race-developed high-flow piston design
Valving: Application specific valving to maximize performance
Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
Bushings: Quiet nitrile rubber allows for increased suspension articulation
Extended (In): 33.520
Compressed (In): 19.900
Travel (In): 13.620
Top Mount: Eyelet
Bottom Mount: Eyelet
Fitment Notes: Includes Billet Reservoir Clamp
Fits: F-250/350 1999-2016 4WD (Rear) Lifted 0-1 Inches
Fits: F-250/350 1999-2016 4WD (Rear) Lifted 1.5-3.5 Inches
Fits: F-250/350 99-16 4WD (Rear) Lifted 2-6.5" | F-450/550 05-16 (Rear) Lifted 3-8"
Fits: F-2250/350 99-16 4WD (Rear) Lifted 1.5-6.5" | 05-16 F-450/550 4WD (Rear) Lifted 3-8"
Fits: E-350/450 1992-2019 (Front) Lifted 0-1.5"
Fits: E-350/450 1992-2019 (Rear) Lifted 0-1.5 Inches
