Thumbnail Filmstrip of Duramax 2001-2016 Cast Aluminum Piston and Ring Set Kit Mahle Motorsports 930036075 Images

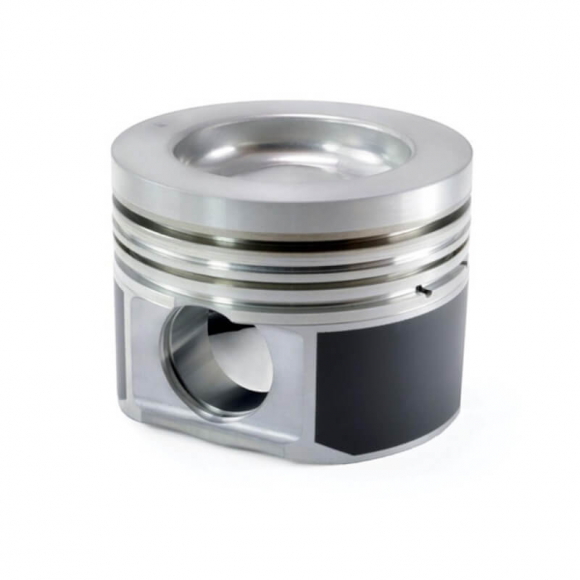

Mahle Motorsports has engineered the 930036075 cast aluminum piston and ring kit to be the ultimate upgrade for your 2001-2016 6.6L GM Duramax. Designed for the unique demands of high-performance diesel engines, these pistons are the solution for modified trucks producing anywhere from 400 to 1,000 horsepower. Whether you're dominating a sled pull, tearing up the drag strip, or simply seeking superior durability for your daily driver, this kit provides the enhanced strength and performance you need to push your engine to the limit. By using the original equipment castings, Mahle has retained the critical cast iron ring insert, ensuring the long-term reliability of a stock component with the added benefits of performance-oriented design.
- Unmatched Durability: Reinforced at critical stress points, these pistons are built to withstand the extreme temperatures and immense fatigue loads that come with high-horsepower diesel applications.
- Optimized Performance: Featuring a performance-oriented combustion bowl and fully radiused valve pockets, the pistons are designed to optimize the combustion process and reduce drag, delivering a noticeable boost in power.
- Complete Kit: Each package includes a full set of pistons, piston rings, pins, and clips, providing everything you need for a comprehensive and reliable replacement.
Choosing the Mahle Motorsports 930036075 piston and ring kit is an investment in your engine's longevity and performance. These pistons bridge the gap between stock reliability and race-ready strength, allowing you to confidently pursue more power without sacrificing durability. Don't settle for components that can't handle the heat. Upgrade your Duramax with a kit built for the serious demands of performance diesel—and enjoy the peace of mind that comes with superior engineering.
Specs:
- Piston Rings Included: Yes
- Bore (in.): 4.075 in.
- Bore (mm): 103.505mm
- Stroke: 3.898 in.
- Rod Length: 6.417 in.
- Piston Style: Dish, with four valve reliefs
- Piston Material: Cast aluminum
- Compression Height (in.): 1.956 in.
- Piston Head Volume (cc): +40.80cc
- Wrist Pin Style: Press-fit or floating
- Wrist Pin Retainers Included: Yes
- Wrist Pin Included: Yes
- Pin Diameter (in.): 1.358 in.
- File Fit: No
- Gapless: No
- Top Ring Thickness: 3.0mm
- Top Ring Material: Stainless steel
- Top Ring Facing Material: Gas nitrided
- Second Ring Thickness: 2.0mm
- Second Ring Material: Cast iron
- Second Ring Facing Material: Chrome
- Oil Ring Thickness: 3.0mm
- Oil Ring Material: Carbon steel
- Oil Ring Tension: Standard
- Remanufactured: No
- Quantity: Sold as a set of 8.
Mahle Motorsports has engineered the 930036075 cast aluminum piston and ring kit to be the ultimate upgrade for your 2001-2016 6.6L GM Duramax. Designed for the unique demands of high-performance diesel engines, these pistons are the solution for modified trucks producing anywhere from 400 to 1,000 horsepower. Whether you're dominating a sled pull, tearing up the drag strip, or simply seeking superior durability for your daily driver, this kit provides the enhanced strength and performance you need to push your engine to the limit. By using the original equipment castings, Mahle has retained the critical cast iron ring insert, ensuring the long-term reliability of a stock component with the added benefits of performance-oriented design.
Unmatched Durability: Reinforced at critical stress points, these pistons are built to withstand the extreme temperatures and immense fatigue loads that come with high-horsepower diesel applications.
Optimized Performance: Featuring a performance-oriented combustion bowl and fully radiused valve pockets, the pistons are designed to optimize the combustion process and reduce drag, delivering a noticeable boost in power.
Complete Kit:[...]
Mahle Motorsports has engineered the 930036075 cast aluminum piston and ring kit to be the ultimate upgrade for your 2001-2016 6.6L GM Duramax. Designed for the unique demands of high-performance diesel engines, these pistons are the solution for modified trucks producing anywhere from 400 to 1,000 horsepower. Whether you're dominating a sled pull, tearing up the drag strip, or simply seeking superior durability for your daily driver, this kit provides the enhanced strength and performance you need to push your engine to the limit. By using the original equipment castings, Mahle has retained the critical cast iron ring insert, ensuring the long-term reliability of a stock component with the added benefits of performance-oriented design.
- Unmatched Durability: Reinforced at critical stress points, these pistons are built to withstand the extreme temperatures and immense fatigue loads that come with high-horsepower diesel applications.
- Optimized Performance: Featuring a performance-oriented combustion bowl and fully radiused valve pockets, the pistons are designed to optimize the combustion process and reduce drag, delivering a noticeable boost in power.
- Complete Kit: Each package includes a full set of pistons, piston rings, pins, and clips, providing everything you need for a comprehensive and reliable replacement.
Choosing the Mahle Motorsports 930036075 piston and ring kit is an investment in your engine's longevity and performance. These pistons bridge the gap between stock reliability and race-ready strength, allowing you to confidently pursue more power without sacrificing durability. Don't settle for components that can't handle the heat. Upgrade your Duramax with a kit built for the serious demands of performance diesel—and enjoy the peace of mind that comes with superior engineering.
Specs:
- Piston Rings Included: Yes
- Bore (in.): 4.075 in.
- Bore (mm): 103.505mm
- Stroke: 3.898 in.
- Rod Length: 6.417 in.
- Piston Style: Dish, with four valve reliefs
- Piston Material: Cast aluminum
- Compression Height (in.): 1.956 in.
- Piston Head Volume (cc): +40.80cc
- Wrist Pin Style: Press-fit or floating
- Wrist Pin Retainers Included: Yes
- Wrist Pin Included: Yes
- Pin Diameter (in.): 1.358 in.
- File Fit: No
- Gapless: No
- Top Ring Thickness: 3.0mm
- Top Ring Material: Stainless steel
- Top Ring Facing Material: Gas nitrided
- Second Ring Thickness: 2.0mm
- Second Ring Material: Cast iron
- Second Ring Facing Material: Chrome
- Oil Ring Thickness: 3.0mm
- Oil Ring Material: Carbon steel
- Oil Ring Tension: Standard
- Remanufactured: No
- Quantity: Sold as a set of 8.
