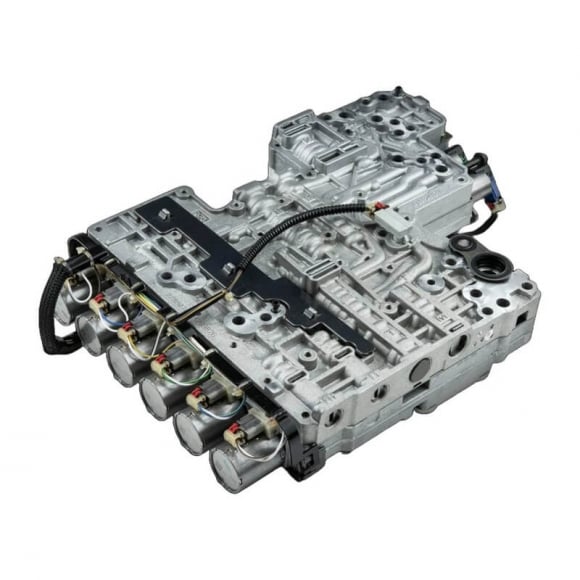

The SunCoast SC-10L1000-PVB Valve Body and Pump Kit represents a sophisticated re-engineering of the 10L1000 transmission, specifically designed for 2020-2026 L5P Duramax applications. While the factory transmission offers exceptional refinement and low Noise, Vibration, and Harshness (NVH), its stock calibration often prioritizes shift comfort over component longevity when subjected to heavy towing, street racing, or high-horsepower demands. Rather than simply "bumping" line pressure, SunCoast utilizes a multi-faceted approach to rectify inherent weaknesses in the factory oiling and apply circuits. By shortening the window between initial engagement and zero turbine slip, this kit transforms the transmission from a comfort-oriented unit into a high-performance component capable of handling extreme loads without the typical degradation associated with clutch slippage.
- Main Line Pressure Elevation: Increases overall line pressure by as much as 60 PSI, significantly boosting the maximal clamping force across all clutch packs and increasing total pump volume.
- Enhanced Oiling and Lubrication: Delivers a 250% increase in cooler charge pressure—moving from a factory 6 PSI to 20 PSI—to aggressively remove heat from planets, bushings, and clutches.
- Optimized Regulator Valve Circuit: Reduces the pressure required to fully engage the regulator (latch) valve for clutches A, B, C, and F by 33%, dropping the threshold from 120 PSI to 80 PSI.
- Accelerated Shift Timing: Shortens shift apply times by evacuating non-critical oil, which reduces frictional heat and prevents the premature failure of the "F" clutch pack.
- TCC Circuit Refinement: Replaces the Torque Converter Clutch (TCC) valve and modifies critical oiling circuits to increase lock-up apply pressure and reduce apply time.
- Integrated Safety Bypass: Features a built-in pressure bypass that dumps excessive fluid above 420 PSI to prevent runaway pressure and the over-compression of clutch fibers.
The results of these engineering upgrades are immediately evident in both the longevity of the internal components and the responsiveness of the vehicle. By allowing the regulator valve to achieve maximal clamping force at a lower pressure threshold, the SunCoast Pro Loc system ensures that the transmission attains its greatest static and dynamic holding capacity much earlier in the shift cycle. This prevents the "soft" engagements that generate excessive heat and lead to burnt clutches. Furthermore, the massive increase in lubrication flow ensures that even in the most demanding environments, critical hardware remains cooled and protected.
NOTE:
- For maximum results in power levels exceeding 800HP, it is highly recommended that the TCC apply offset be changed in the factory file calibration
- This valve body is currently built to order and is processed based on order date. At this time, please allow up to 15 business days from the time of purchase for processing and fulfillment.
