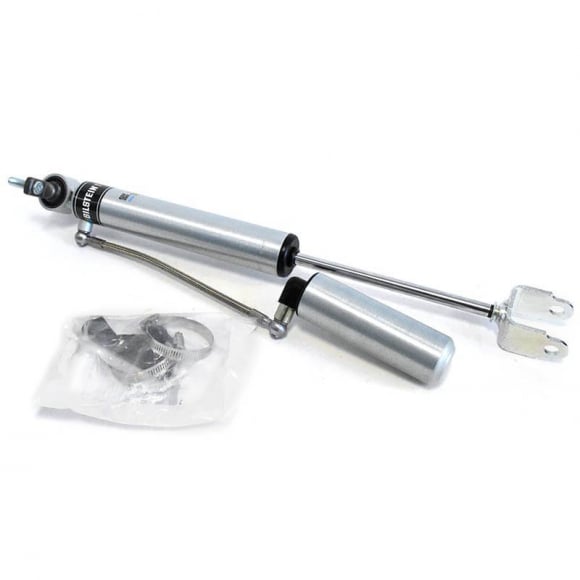

Bilstein B8 5160 Front Shock Absorber — 25-312027
Remote reservoir monotube shock for lifted LML and L5P Duramax trucks
Upgrade the front suspension on your lifted 2011–2026 Chevy Silverado or GMC Sierra 2500HD/3500HD with the Bilstein B8 5160 Series shock absorber, part number 25-312027. Built for 2WD and 4WD trucks with 4–6 inches of front lift, this shock is a proven choice for LML and L5P Duramax owners who need more control, cooler operation, and extra wheel travel than a stock-length shock can deliver.
The 5160 uses a 46mm monotube body and a remote reservoir that increases oil capacity for better heat dissipation and more consistent damping on long hauls, work sites, and rough roads. Velocity-sensitive digressive valving is tuned for these heavy-duty GM chassis—firm when the surface gets aggressive, composed and comfortable on the highway. A 360-degree swivel banjo hose fitting keeps the reservoir hose low-profile and easy to route without interference.
Key features
- Remote reservoir for extra oil volume, cooler running, and increased wheel travel
- 46mm monotube design that resists fade compared with twin-tube shocks
- Application-tuned digressive valving for GM 2500/3500 HD geometry
- Zinc-plated body with clear coat for corrosion resistance
- Direct-fit stock mounts (bar-pin upper, clevis lower)—no cutting or welding
- Sold individually (order two for a complete front pair)
Specifications
- Part number: 25-312027
- Series: Bilstein B8 5160
- Position: Front
- Lift range: 4–6" front
- Body: 46mm monotube, smooth body (non-coilover)
- Collapsed length: 15.53" (394.5 mm)
- Extended length: approximately 24.22–24.34"
- Stroke: approximately 8.69"
- Reservoir: Yes (remote)
- Finish: Zinc plated
- Upper mount: Bar pin
- Lower mount: Clevis
- Quantity: 1 shock
- Warranty: 2-year limited manufacturer warranty
Fitment
- 2011–2026 Chevrolet Silverado 2500HD
- 2011–2026 Chevrolet Silverado 3500HD
- 2011–2026 GMC Sierra 2500HD
- 2011–2026 GMC Sierra 3500HD
- 2WD and 4WD
- LML (2011–2016) and L5P (2017+) 6.6L Duramax, plus gas engines
- Front position only
- 4–6" front lift
Important notes Not compatible with lower-control-arm torsion-bar relocation brackets. Confirm your lift kit uses the factory shock mounting points. Two shocks are required for a complete front pair. Pair with matching rear 5160 shocks for a balanced setup.
